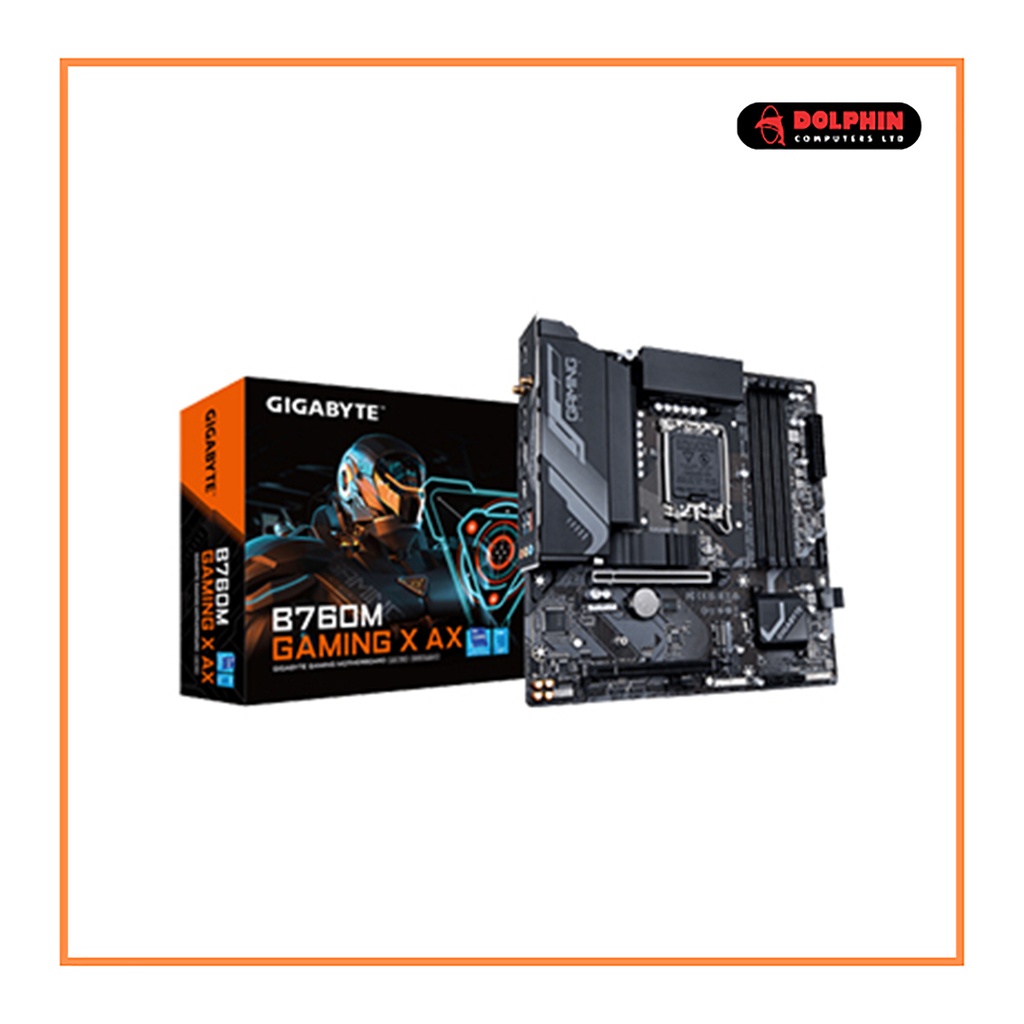

GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard

https://www.dolphin.com.bd/web/image/product.template/16797/image_1920?unique=f826f4d

Key Features
Model: B760M GAMING X AX DDR5
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR5, Max 192GB 7600(OC)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E AX210

21,832.50 ৳ 21832.5 BDT 21,832.50 ৳

21,832.50 ৳

Not Available For Sale

    This combination does not exist.


    Share :

    Specification

    Basic Information
    Supported CPULGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
    L3 cache varies with the CPU
    ChipsetIntel B760 Express Chipset
    BIOS1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorMicro ATX Form Factor; 24.4cm x 24.4cm
    AudioRealtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    Support for S/PDIF Out
    Expansion Slots
    PCI1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
    1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
    Memory
    TypeDDR5
    Slots4
    Supported MemorySupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Memory192GB
    Graphics
    GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    Connector & Ports
    HDMI1x HDMI
    Display Port (s)1x DisplayPort
    USB (s)Chipset:
    1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
    5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    1 x USB 2.0/1.1 port on the back panel
    Chipset+2 USB 2.0 Hubs:
    8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    LAN Port (s)Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    1 x RJ-45 port
    Wireless Communication moduleIntel Wi-Fi 6E AX210 (PCB rev. 1.0)
    WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    BLUETOOTH 5.3
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Intel Wi-Fi 6E AX211 (PCB rev. 1.1)
    WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    BLUETOOTH 5.3
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.2)
    WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    BLUETOOTH 5.3
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Supported Storage1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
    4 x SATA 6Gb/s connectors
    RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    Audio1 x front panel audio header
    3 x audio jacks
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    3 x system fan headers
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    2 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x USB Type-C header, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    2 x Thunderbolt add-in card connectors
    1 x serial port header
    1 x Q-Flash Plus button
    1 x reset jumper
    1 x Clear CMOS jumper

    Back Panel Connectors
    3 x USB 3.2 Gen 1 ports
    5 x USB 2.0/1.1 ports
    2 x SMA antenna connectors (2T2R)
    1 x HDMI 2.0 port
    1 x DisplayPort
    1 x RJ-45 port
    3 x audio jacks
    TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    Others
    Special FeaturesSupport for GIGABYTE Control Center (GCC)
    Support for Q-Flash
    Support for Q-Flash Plus
    Bundled SoftwareNorton Internet Security (OEM version)
    LAN bandwidth management software
    Warranty Information
    Manufacturing Warranty3 years

    Description

    GIGABYTE B760M GAMING X AX DDR5 mATX Motherboard

    The GIGABYTE B760M GAMING X AX is a high-performance motherboard designed for gaming enthusiasts and power users. It supports both 14th, 13th and 12th-generation Intel processors with its LGA 1700 socket, ensuring compatibility with the latest CPU technologies. This 14th Gen Motherboard is its Hybrid 8+1+1 Phases Digital VRM solution, which provides exceptional power delivery and stability for optimal performance. This ensures that the motherboard can handle demanding tasks and overclocking without any issues. The motherboard supports Dual Channel DDR5 memory, allowing for faster data transfer rates and improved multitasking capabilities. With four DIMM slots and XMP memory module support, users can easily install and configure high-speed RAM for smooth and responsive system performance. The GIGABYTE B760M GAMING X AX motherboard. It features two PCIe 4.0 x4 M.2 connectors, enabling lightning-fast storage solutions. Additionally, the motherboard incorporates an advanced thermal design and M.2 Thermal Guard to maintain VRM power stability and optimize M.2 SSD performance, preventing thermal throttling and ensuring reliable operation. The EZ-Latch feature of the PCIe 4.0x16 slot allows for easy installation and removal of graphics cards, making it convenient for users who frequently upgrade their GPUs. The motherboard also offers fast networking capabilities with 2.5GbE LAN and Wi-Fi 6E 802.11ax support, ensuring low latency and high-speed connectivity for online gaming and other network-intensive tasks. The GIGABYTE B760M GAMING X AX provides a front USB-C® port with a 10Gb/s transfer speed, as well as DisplayPort (DP) and HDMI ports for multiple display setups. This allows users to connect various peripherals and external devices with ease. The Smart Fan 6 feature is designed to keep the system cool and quiet. It includes multiple temperature sensors and hybrid fan headers with FAN STOP technology, enabling precise control over fan speeds and optimizing cooling performance while minimizing noise levels. The Q-Flash Plus, allows users to update the motherboard's BIOS firmware without the need to install the CPU, memory, and graphics card. This feature provides a convenient and hassle-free method for keeping the system up to date with the latest firmware releases. The GIGABYTE B760M GAMING X AX DDR5 motherboard offers a comprehensive range of features and technologies for gamers and power users seeking exceptional performance, reliable connectivity, and convenient upgradability.
