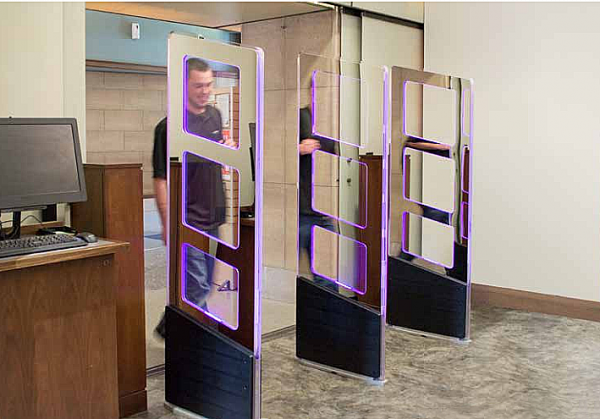

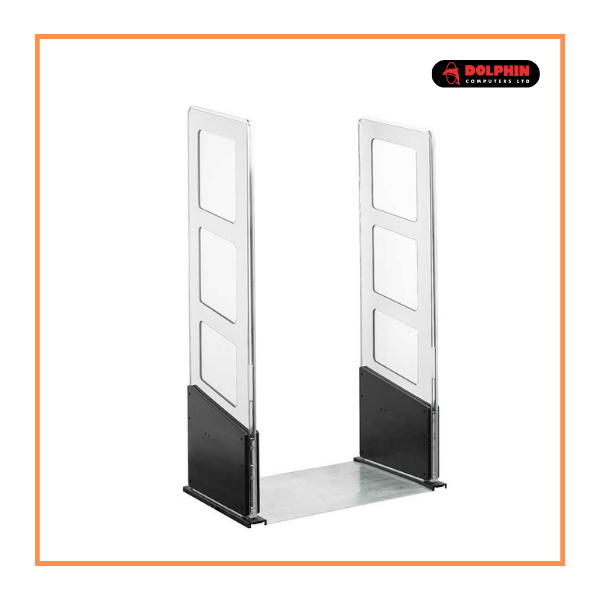

Bibliotheca Tattle-Tape EM Clear Detection Gate

Key Features:
Genuine Tattle-Tape™ technology
Superior detection of items in any orientation
Integrated with libraryConnect™
Reduce unwanted alarms
Integrated, visible people counter
Sleek, modern design
Selectable alarm color and pattern
call for Price and Details 01713493161

0.00 ৳ 0.0 BDT 0.00 ৳

0.00 ৳

Not Available For Sale

    This combination does not exist.

    Share :

    Brand   Bibliotheca

    Basic Information


    Millimetres: 70 (Max at base) x 610 x 1781 (± 3)
    Inches: 2.75 (Max at base) x 24 x 72.125 (± 0.1)


    Kilograms: 43
    Pounds: 95

    PowerSupply voltage: 100/120, 220/240 VAC, 50 / 60 Hz
    Power consumption: 3.0A / 1.5A
    DataEthernet (TCP/IP)
    PerformanceOptimized for detection of Tattle-Tape™ markers
    Optimal coverage is achieved within 39.4 inches / 1,000 mm of separation
    AlarmMulti-color*, customer selectable LED lights
    Variable alarm pattern and adjustable volume
    Highly visible integrated digital display to monitor alarm counts, ingoing and outgoing
    patron traffic, and diagnostics
    *Available colors: red, cyan, magenta, blue, green, yellow, white, & rotate mode
    Standards complianceCE, RCM, ETSI, FCC, IC, ADA, DDA, ETL and CSA
    Temperature rangeOperating: 10 °C to +40 °C/Storage: –40 °C to +55 °C
    ConfigurationsStandard configuration can support up to 6 panels to provide total coverage of 6.0m
    InstallationMultiple installation options including direct attachment to the floor with either in floor
    wiring or a wire way and a baseplate option. The on-board tuning allows the gates to be
    placed within 45.7cm (18”) from any metal objects, giving more freedom than ever to
    install within confined areas.
    SoftwareSoftware is not required for the Tattle-Tape™ gate clear to operate, however, when used
    in conjunction with our staffConnect™ gate software, enhanced reporting is available
    Additional featuresIntegrated bi-directional people counter.
    Ability to trigger external devices such as CCTV, voice alarms and entry gates
    OptionsAbility to customize ambient LED lights with 10 color options and various patterns

    Reduce unwanted alarms

    The Tattle-Tape™ gate clear can detect when an activated
    strip is leaving the library, significantly reducing false alarms
    at the gate when people enter. With multiple pedestals
    used to cover a larger entrance-way, the alarm lights
    on the gates also identify which aisle caused the alarm,
    helping staff locate items that triggered the alarm faster.

    Integrated with libraryConnect™

    Staff can remotely access libraryConnect™ for in-depth
    statistics and configuration options. This allows staff to
    remotely upgrade firmware, run monthly reports and
    change the alarm colors and patterns.

    Genuine Tattle-Tape™ technology

    With powerful algorithms, the genuine Tattle-Tape™
    technology can distinguish between common metal
    items and any EM strip to yield the most accurate results.
    This means less false alarms and fewer inconveniences for
    both users and staff.

    Superior detection of items in any orientation

    Using the latest in DSP technology, the Tattle-Tape™ gate
    clear can detect EM strips regardless of the orientation
    within the gates, offering the highest level of detection,
    even in the nosiest of environments.

    Integrated, visible people counter

    The on-board bi-directional people counter accurately
    counts the number of people entering and leaving the
    library. This information is transferred to libraryConnect™ as
    well as the control box, which has a convenient display for
    quick access to live stats.

    Sleek, modern design

    We designed our new Tattle-Tape™ gate clear to fit within
    new modern and updated library spaces. With the
    complimentary mirrored finish, your security gates easily
    match your library interior.

    Selectable alarm color and pattern

    Both visual and audible security alarm settings are
    completely configurable by the library. With 8 LED color
    alarms and patterns to choose from, the Tattle-Tape™
    gate clear ensures both users and staff are alerted of
    items that have not been properly checked out.

    Customizable ambient lighting

    The Tattle-Tape™ gate clear boasts an attractive and
    modern ambient lighting design that illuminates the
    entire panel. With a range of color options to choose
    from, libraries can customize the standard ambient color
    as well as the alarm color pattern. The well-lit Tattle-Tape™
    gate clear adds an attractive and colorful impact at the
    library entrance. With endless ambient and alarm color
    combinations, choose the perfect lighting combination
    for your library atmosphere.

    Flexible configuration and installation

    Simple set-up and maintenance allows our trained
    technicians to cause little disruption to your library and staff
    can quickly troubleshoot concerns with our dedicated
    phone support teams.
