Price:
3,600.00 ৳

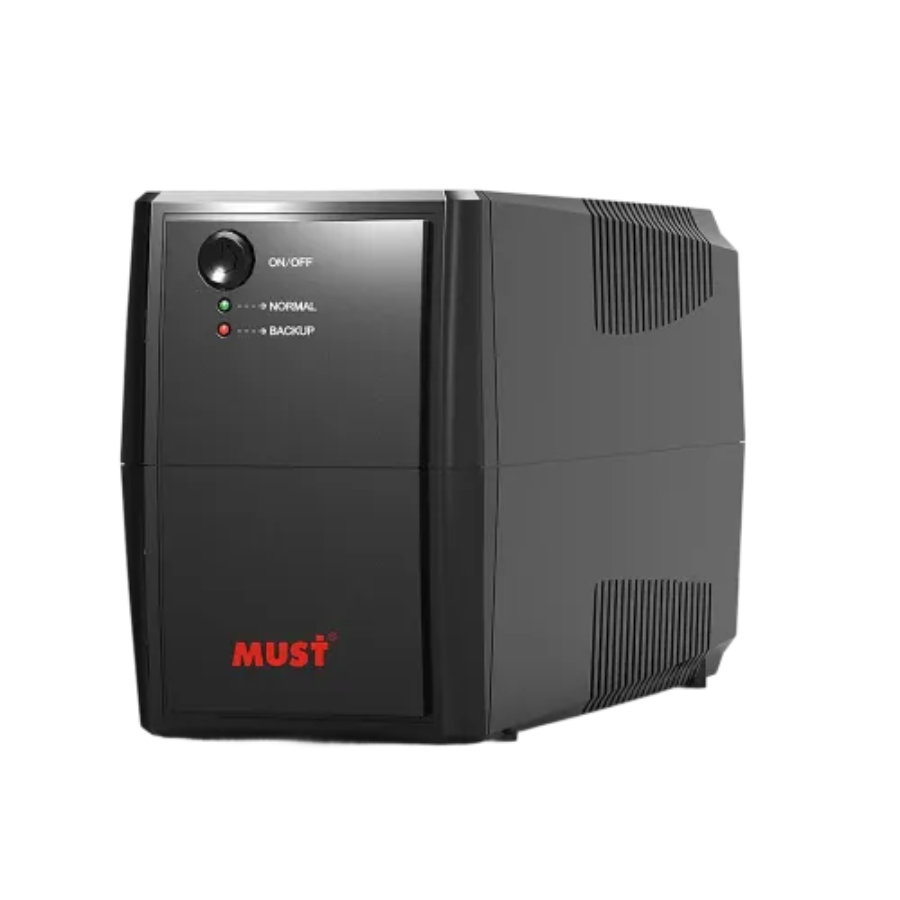

MUST UPS EW2110-650VA,390W SMART LINE-INTERACTIV,12V,7AH
Key Features
Model: EW2110-600
Output Capacity: 650VA/390W
Input Voltage: 110V/120 VAC or 220/230/240 VAC
Battery Capacity: 12V/7ah*1pcs
Protection: Low Voltage, Overload, Short Circuit
Specification
Main Feature | |
| Capacity | 650VA |
| Load Capacity | 390W |
| Input Voltage | 110V/120 VAC or 220/230/240 VAC |
| Output Voltage | 85-145VAC/145-290VAC |
| Frequency (Battery Mode) | 45~65 Hz |
| Noise Level | Less than 40dB |
| Battery | 12V/7ah*1pcs |
| Others | Low voltage & overload & short circuit protection CPU controlled Auto re-starts when AC recovers Silence setup Automatic charging(offline charging) Battery low voltage protection Overload short circuit protection Wide input voltage range AVR function Cold start function Generator compatible |
Input Features | |
| Frequency | 45~65 Hz |
| Voltage Range | 110V/120 VAC or 220/230/240 VAC |
Output Features | |
| Voltage Range | 102-132VAC/200-255VAC |
| Type of Wave | PWM (Batt. mode) |
| Transfer Time | Typical 2-6ms,10ms max |
Physical Specification | |
| Dimension | 284*95*140mm |
| Weight | 3.9kg |
Manufacture Warranty | |
| Warranty | 1 year Under the following conditions, the warranty would not be provided: • UPS burning due to thunder, abnormal overload, insect entrance and others. • If ambient temperature should not be maintained at 20 to 26 degrees Celsius with proper dehumidification. (24/7) • If the product is placed in a dusty and damp place. • In the absence of Generator connectivity Without proper battery charge, the warranty will be void. • Battery swelling and overcharging due to the wrong system voltage setting of the UPS. |
Description
Must EW2110-650 650VA Line Interactive Offline UPS
The Must EW2110-650 650VA Line Interactive Offline UPS provides a dependable and efficient power backup solution. Designed to keep your valuable electronic gadgets safe from unexpected power outages and voltage fluctuations. The Must EW2110-650 650VA Offline UPS, designed with accuracy, has a rated power capacity of 650VA or 390W, making it excellent for small offices, home PCs, routers, and other critical equipment that requires continuous and stable power. It offers two input voltage configurations: 110V/120V or 220V/230V/240V, with a wide input voltage range of 85-145VAC or 145-290VAC, ensuring constant operation in fluctuating power circumstances. With a transfer time of only 2-6 milliseconds and a maximum of 10 milliseconds, the Must EW2110-650 650VA UPS ensures a smooth transition to battery mode during power outages. The UPS produces a clean PWM output waveform and operates within a voltage range of 102-132VAC or 200-255VAC, depending on the regional power setting. The output frequency adapts automatically to 50Hz or 60Hz with ±0.5Hz precision. The Must EW2110-650 UPS has one 12V/7Ah battery and delivers enough backup power, charging to 90% capacity in 4-6 hours for speedy recovery after discharge. This Must Offline UPS is loaded with clever features, including CPU control, automated charging, AVR (automated Voltage Regulation) functionality, and cold start capability. It begins immediately when AC power is restored, has a silent mode for quiet operation, and contains full protection against low voltage, overload, and short circuits. It operates efficiently in temperatures ranging from 0°C to 40°C and humidity levels ranging from 20% to 90%, ensuring longevity and consistent performance in a variety of settings.
