Key Features
Model: NM790
Sequential Read & Write Speed: 7400MB/s & 6500MB/s
Interface: PCIe Gen4x4
Form Factor: M.2 2280
Vibration-resistant: 10~2000Hz

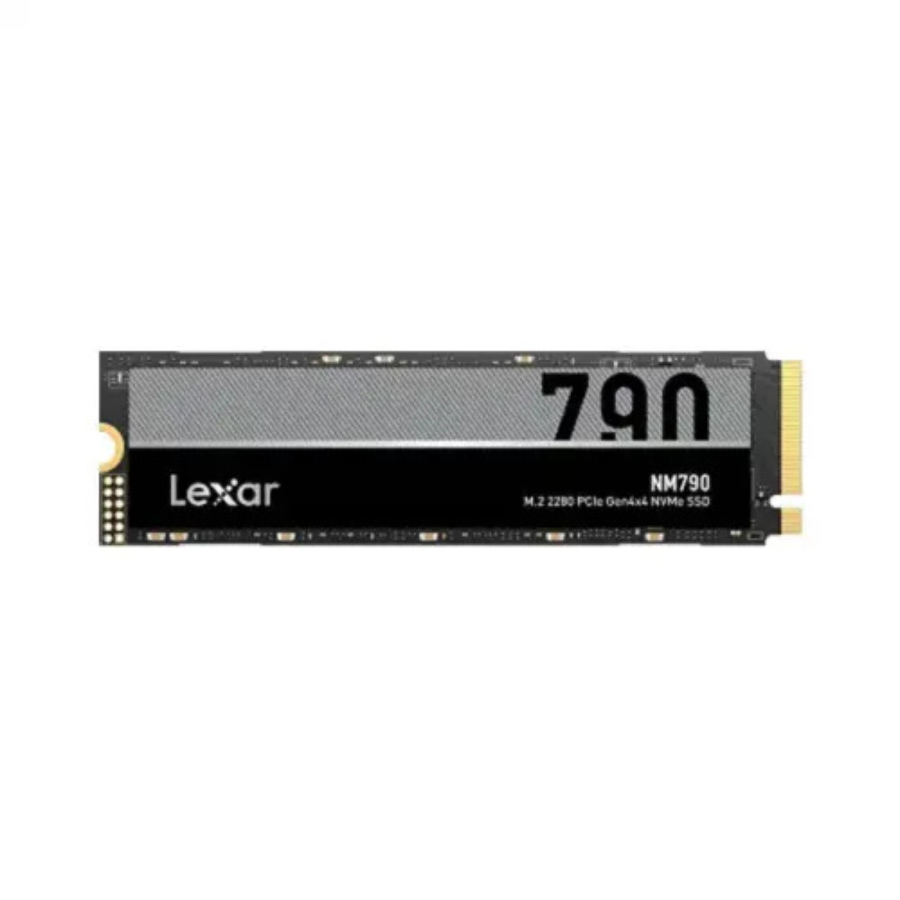

| Model | Lexar NM790 |
| Capacity | 2TB |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen4x4 |
| Performance | Read speed up to 7400MB/s¹, sequential write speed up to 6500MB/s¹, random read up to 1,000,000 IOPs, random write up to 900,000 IOPs |
| Operating Temperature | 0° to 70° C (32°F to 158°F) |
| Storage Temperature | -40° to 85° C (-40°F to 185°F) |
| Shock Resistant | 1500G, duration 0.5ms, Half Sine Wave |
| Vibration Resistant | 10~2000Hz, 1.5mm, 20G, 1 Oct/min, 30min/axis(X,Y,Z) |
| MTBF | 1,500,000 Hours |
| TBW | 2TB: 1500TBW |
| Dimension (L x W x H) | 80 x 22 x 2.45 mm / 3.15”x0.87”x0.10” |
| Weight | 6g / 0.013lbs |
| Warranty | 5-Years Limited Warranty |
| Brands | Lexar |
