Price:
8,600.00 ৳

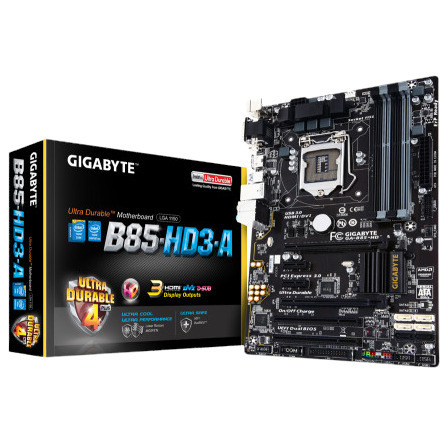

GIGABYTE B85 CHIPSET MOTHERBOARD
Key Features
Brand: GIGABYTE
Model: GIGABYTE B85
Chipset: Intel B85 Express Chipset
Memory: 4 x DDR3
Specification
| Item | Motherboard |
|---|---|
| Brand | Gigabyte |
| Motherboard Type | Standard |
| Chipset | Intel B85 Express Chipset |
| Supported Processors | Support for Intel Core i7 / Core i5 / Core i3 / Intel Pentium / Intel Celeron processors in the LGA1150 Package L3 Cache Varies with CPU |
| Max Memory | 4 x DDR3 DIMM Sockets Supporting up to 32 GB of System Memory |
| Onboard Video | 1 x D-Sub Port 1 x HDMI Port 1 x DVI-D Port |
| Onboard Audio | Realtek ALC892 Codec High Definition Audio 2/4/5.1/7.1-Channel Support for S/PDIF In/Out |
| Onboard LAN | Realtek GbE LAN chip (10/100/1000 Mbit) |
| Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12 V power connector 4 x SATA III 6 Gb/s connectors 2 x SATA II 3 Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper |
| Other Features | 1 x PS/2 keyboard/mouse port 2 x USB 3.0/2.0 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
Description
Gigabyte GA-B85M-HD3-A gaming motherboard is designed to fit in cases that support the micro ATX form factor. This motherboard also employs an Intel B85 Express chipset, providing a solid foundation for your next gaming PC build. This motherboard integratiointegration supports Intel HD graphics with up to 1GB of shared memory. It will support resolutions up to 4096 x 2160 24 Hz or 2560 x 1600 60 Hz when connected via two HDMI connections.
