Price:
10,000.00 ৳

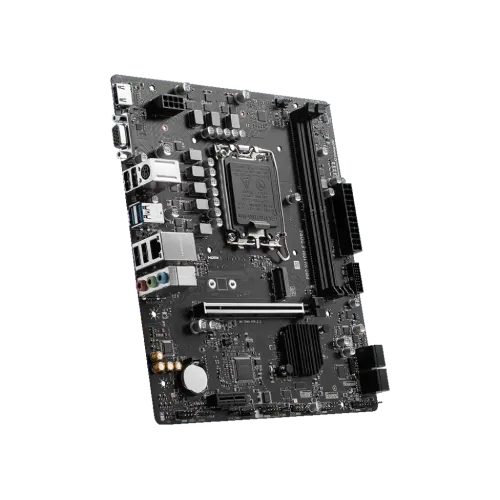

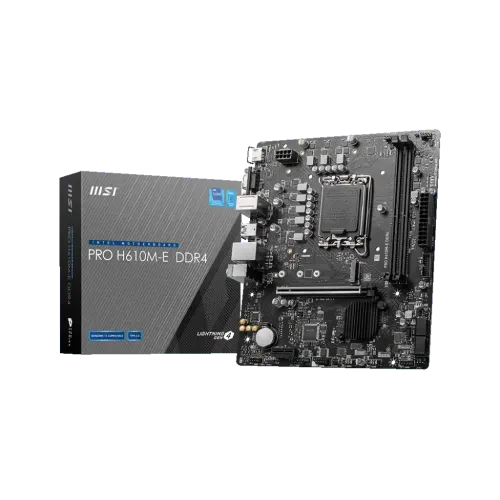

MSI MOTHERBOARD PRO H610M-E DDR4,14TH,13TH.12TH,GEN,HDMI
Key Features:
Model: PRO H610M-E DDR4
Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 2x DDR4, Max 64GB
Graphics Output: 1x HDMI, 1x VGA
Features: 1x M.2 slot, Realtek RTL8111H Gigabit LAN
Specification
| Basic Information | |
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors LGA 1700 |
| Chipset | Intel H610 Chipset |
| Form Factor | mATX 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
| Audio | Realtek ALC897 Codec 7.1-Channel High-Definition Audio |
| Expansion Slots | |
| PCI | 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot (From H610 chipset) Supports PCIe 3.0 x1 |
| Memory | |
| Type | DDR4 |
| Slots | 2 |
| Supported Memory | Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory |
| Maximum Memory | 64GB |
| Graphics | |
| Graphics | supporting a maximum resolution of 4K 30Hz supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |

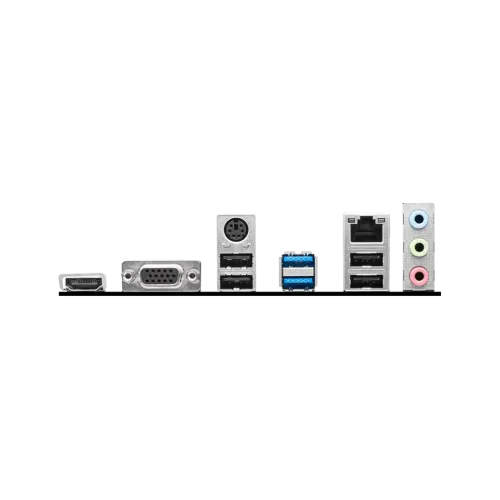

| Connector & Ports | |
| HDMI | 1x HDMI 1.4 with HDR port |
| VGA (s) | 1x VGA |
| USB (s) | 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From Hub-GL850G) Supports additional 4 USB 2.0 ports |
| LAN Port (s) | 1x Realtek RTL8111H 1Gbps LAN controller |
| Supported Storage | 1x M.2 slot (Key M) (from CPU) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices |
| Audio | 1x Front panel audio connector |
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin +12V power connector 1x 4-pin CPU fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| Others | |
| Special Features | 1x 4-pin RGB LED connector 4x EZ Debug LED |
| Warranty Information | |
| Manufacturing Warranty | 3 years |
No Specifications
