Price:
19,500.00 ৳

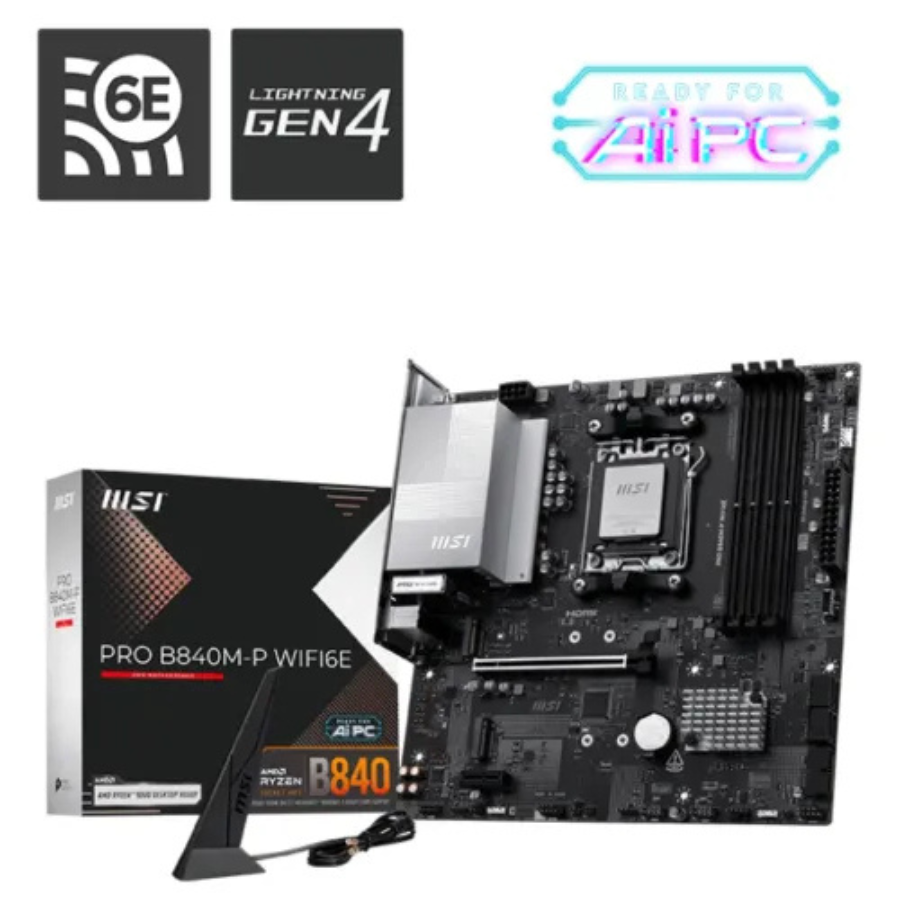

MSI MOTHERBOARD PRO B840M-P WIFI DDR5
Key Features
Model: PRO B840M-P WIFI6E
Supported CPU: AMD Ryzen 9000/ 8000/ 7000 Series for Socket AM5
Supported RAM: 4x DDR5 UDIMM, Up to 8000 (OC) Mhz, Max. 256GB
Graphics Output: 1x HDMI 2.1, maximum resolution of 4K 60Hz
Features: 2x M.2 Slot, Realtek 8125D 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3
Specification
Basic Information | |
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD B840 |
| BIOS | Flash BIOS Button |
| Form Factor | mATX 243.84mmx243.84mm |
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
Expansion Slots | |
| PCI | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors) |
| M.2 Socket | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) |
Memory | |
| Type | DDR5 |
| Slots | 4x UDIMM |
| Supported Memory | Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
| Maximum Memory | 256GB |
| Graphics | |
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz |
Connector & Ports | |
| HDMI | 1x HDMI |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) |
| LAN Port (s) | Realtek 8125D 2.5G LAN |
| Wireless Communication module | Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_2 slot • Supports up to PCIe 4.0 x4 • Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors) |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Audio | 1x Front Audio (JAUD) |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
Others | |
| Special Features | 4x EZ Debug LED 1x EZ Memory Detection LED |
Warranty Information | |
| Manufacturing Warranty | 3 Years |
Description
MSI PRO B840M-P WIFI6E AM5 mATX Motherboard
The MSI PRO B840M-P WIFI6E motherboard is intended for modern PC builders who require performance, stability, and flexibility in a single compact micro-ATX board. It is based on the AMD B840 chipset and supports the latest AMD Ryzen 9000, 8000, and 7000 series desktop CPUs with socket AM5, making it a future-ready option for both gaming and professional applications. Memory performance is a notable highlight, as it supports up to 256GB of DDR5 across four UDIMM slots with dual-channel design. The MSI PRO B840M-P WIFI6E Motherboard can reach overclocked rates of 8000+ MT/s depending on the CPU and configuration. Support for AMD EXPO makes RAM overclocking easier and more stable. The board's design prioritizes durability and thermal performance, with features such as a 7+2+1 power phase system, expanded heatsinks, and MOSFET thermal pads rated at 7W/mK, which ensure consistent cooling for high-performance applications. The MSI PRO B840M-P WIFI6E Motherboard boasts equally amazing storage with two M.2 slots that enable PCIe 4.0 x4 NVMe SSDs and four SATA 6Gb/s connections, as well as RAID setups for both SATA and M.2 devices. A PCIe 4.0 x16 slot for graphics cards and a PCIe 3.0 x1 slot for additional peripherals are among the expansion choices. It has a Realtek 8125D 2.5G LAN and built-in Wi-Fi 6E with Bluetooth 5.3, ensuring high-speed, robust networking in gaming and professional environments. Onboard graphics are supported via HDMI 2.1 at 4K @ 60Hz, depending on the CPU. The MSI PRO B840M-P WIFI6E Motherboard's audio system is driven by the Realtek ALC897, which provides 7.1-channel high-definition audio for immersive entertainment. USB connectivity is diverse, with USB 2.0, USB 3.2 Gen1 5Gbps, and speedier 10Gbps Type-A and Type-C connectors on both the back and front panels. Additional features such as the EZ M.2 Clip, EZ PCIe Clip, and EZ Debug LEDs facilitate construction and debugging. The MSI PRO B840M-P WIFI6E, which supports Windows 11 64-bit, RGB headers, and durable thermal solutions, provides a balanced combination of performance, durability, and user-friendly design for a powerful desktop setup.
| Brands | MSI |
