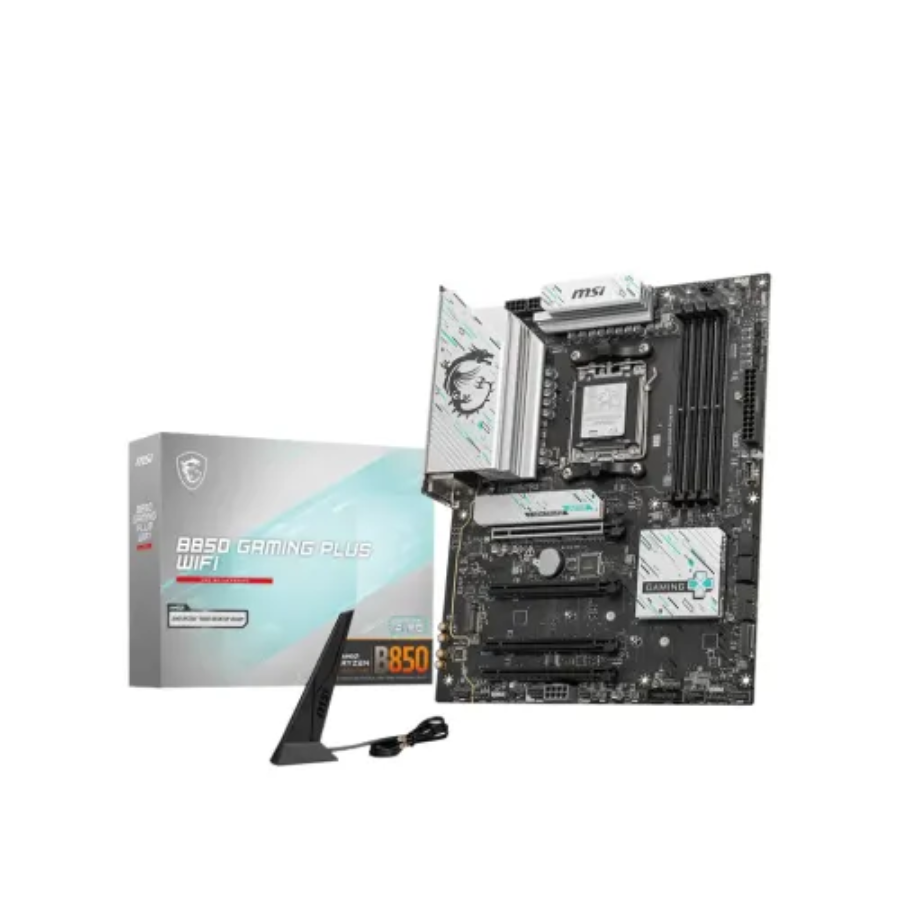

MSI MOTHERBOARD B850 GAMING PLUS WIFI AM5
Key Features
Model: B850 GAMING PLUS WIFI
Supported CPU: AMD Socket AM5 for AMD Ryzen 9000, 8000 & 7000 Series
Supported RAM: 4x DDR5, up to 256GB, 8200+ MT/s (OC)
Graphics Output: 1x DisplayPort 1.2, 4K 60Hz Resolution
Features: Realtek 8126VB 5G Ethernet, Wi-Fi 7, Bluetooth 5.4
Specification
Basic Information | |
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors |
| Chipset | AMD B850 |
| BIOS | Flash BIOS Button |
| Form Factor | ATX 243.84mm x 304.8mm |
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
Expansion Slots | |
| PCI | 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor) |
| M.2 Socket | 3x M.2 |
Memory | |
| Type | DDR5 |
| Slots | 4 x UDIMM |
| Supported Memory | max. 256GB, DDR5 Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only |
| Maximum Memory | 256GB |
Graphics | |
| Graphics | 1x DisplayPort Support DisplayPort 1.2, maximum resolution of 4K 60Hz |
Connector & Ports | |
| Display Port (s) | 1x DisplayPort 1.2 |
| USB (s) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear |
| LAN Port (s) | 1x Realtek 8126VB 5G LAN |
| Wireless Communication module | Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4, supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices 4x SATA 6G M2_1 slot Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) |
| RAID | Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| Audio | 1x Front Audio (JAUD) |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
Others | |
| Special Features | 4x EZ Debug LED |
Warranty Information | |
| Manufacturing Warranty | 3 Years Warranty |
Description
MSI B850 GAMING PLUS WIFI AM5 ATX Motherboard
The MSI B850 GAMING PLUS WIFI AM5 ATX Motherboard is a powerful, feature-rich solution intended for gamers, multimedia makers and PC enthusiasts. This motherboard, powered by the AMD B850 chipset, supports AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors on the AM5 socket, resulting in cutting-edge performance. It has four DDR5 DIMM slots and supports up to 256GB of DDR5 memory, with overclocked rates of 8200+ MT/s for seamless multitasking and gaming. The MSI B850 GAMING PLUS WIFI Ryzen Motherboard has four PCIe x16 slots, with the primary slot supporting PCIe 5.0, making it suitable for high-end GPUs and expansion cards. Storage is lightning fast, with three M.2 slots, including one PCIe 5.0 x4 slot for next-generation NVMe SSDs and two PCIe 4.0 slots, as well as four SATA 6G connectors for further storage versatility. The MSI B850 GAMING PLUS WIFI AMD Motherboard boasts impressive connectivity, including Realtek 8126VB 5G LAN for high-speed wired networking and Wi-Fi 7 with Bluetooth 5.4 for ultra-fast wireless performance. The Realtek ALC897 chipset drives the 7.1-channel high-definition audio, providing an immersive audio experience for gaming and multimedia. The back I/O panel features a variety of USB ports, including USB 10Gbps Type-A and Type-C, as well as a DisplayPort 1.2 output for integrated graphics compatibility. The MSI B850 GAMING PLUS WIFI Motherboard also has ARGB and RGB headers, an EZ Debug LED and a Flash BIOS button, which makes troubleshooting and customizing easier. The MSI B850 GAMING PLUS WIFI ATX Motherboard is an excellent choice for developing a strong gaming PC. It supports Windows 11 64-bit and has a solid ATX form factor of 243.84mm x 304.8mm. Whether you're updating or constructing a new system, the MSI B850 GAMING PLUS WIFI provides cutting-edge performance, a future-proof connection and unrivaled dependability.
