Price:
6,200.00 ৳
ARKTEK MOTHERBOARD H110M,INTEL 6TH,7TH,8TH,9TH GEN SOCKET,DDR4,NVME,HDMI,VGA,USB
Key Features
Chipset: Intel H110 Chipset for 6th/7th/8th/9th Gen
Socket: Intel Socket 1151
Storage: 3x SATA, 1xM.2 supports PCIE+SATA mode
Memory: 2 x DDR4 2400/2666/3000MHz
Warranty: 3-Year Brand Warranty
Specification
| CPU Support | CPU Support: Intel Socket 1151 for 6th/7th/8th/9th Generation Corei7/Corei5/Corei3/Pentium/Celeron Processors Supports Intel 14 nm CPU |
| Chipset | Chipset: Intel H110 Chipset |
| On-Board Graphics | Integrated Graphics Processor-Intel HD Graphics support |
| Memory | 2.DDR4 2400/2666/3000MHz Memory Max. up to 32GB each |
| DIMM | 2 x Memory Slots |
| LAN | On board Realtek RTL8105E 10/100 Mbps adaptive network card interface |
| Audio | Chip integrated by Realtek 661 on board, Supports 6-channel audio-out |
| SATA | 3x SATA 1xM.2 supports PCIE+SATA mode |
| Rear I/O | 1 x VGA port 1 x HDMI port 4 x USB 2.0 port 2 x USB 3.0 port 1 x LAN jack 3 x Audio jack |
| Internal I/O | 2 x USB 2.0 header supports an additional 3 USB 2.0 ports 1 x USB 3.0 header supports an additional 2 USB 3.0 ports 1 x Front Panel Audio header |
| Expansion Slots | 1 x PCI Express x16 slot |
| Form Factor | Micro-ATX (22 x 17 cm) |
| OS Support | Support Windows 7 / 8 / 8.1 / 10(x64) |
| Mounting | 4 mounting holes |
| Accessories | 1 x SATA cable 1 x I/O Backboard 1 x User Manual 1 x Driver CD |
| Warranty | 3-Year Brand Warranty |
Description

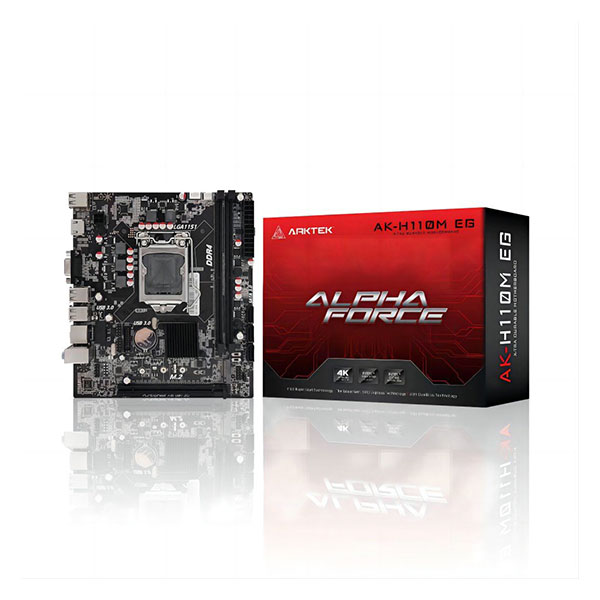

Arktek AK-H110M EG 7th Gen micro-ATX Motherboard
Arktek AK-H110M EG 7th Gen micro-ATX Motherboard is built to support a wide range of Intel processors including 6th, 7th, 8th, and 9th Generation Core i7, Core i5, Core i3, Pentium, and Celeron CPUs, providing flexibility for various computing needs. Powered by the Intel H110 Chipset and integrated Intel HD Graphics support, this motherboard delivers reliable performance for everyday computing tasks. Featuring two DDR4 memory slots with support for speeds up to 2400/2666/3000MHz and a maximum capacity of 32GB each, the Arktek AK-H110M EG motherboard ensures efficient multitasking and system responsiveness. The onboard Realtek 661 chip provides a 6-channel audio output for a satisfying listening experience. With three SATA ports and one M.2 slot supporting PCIE+SATA mode, this motherboard offers ample storage options for your data and applications. Its real I/O includes PS/2 mouse and keyboard ports, VGA and HDMI ports, USB 2.0 and USB 3.0 ports, LAN jack, and audio jacks, catering to diverse connectivity needs.
The micro-ATX form factor (22 x 17 cm) makes it suitable for compact builds, while the four mounting holes ensure easy installation and stability. The motherboard also features a PCI Express x16 slot for expansion capabilities, allowing you to add additional hardware components as needed. With support for Windows 7 / 8 / 8.1 / 10(x64) operating systems, the Arktek AK-H110M EG 7th Gen micro-ATX Motherboard offers compatibility with a wide range of software. It comes with accessories including a SATA cable, I/O backboard, user manual, and driver CD for convenient installation and setup. Backed by a 3-year brand warranty, the Arktek AK-H110M EG 7th Gen micro-ATX Motherboard provides reliability and performance for your computing needs.
