Price:
17,500.00 ৳

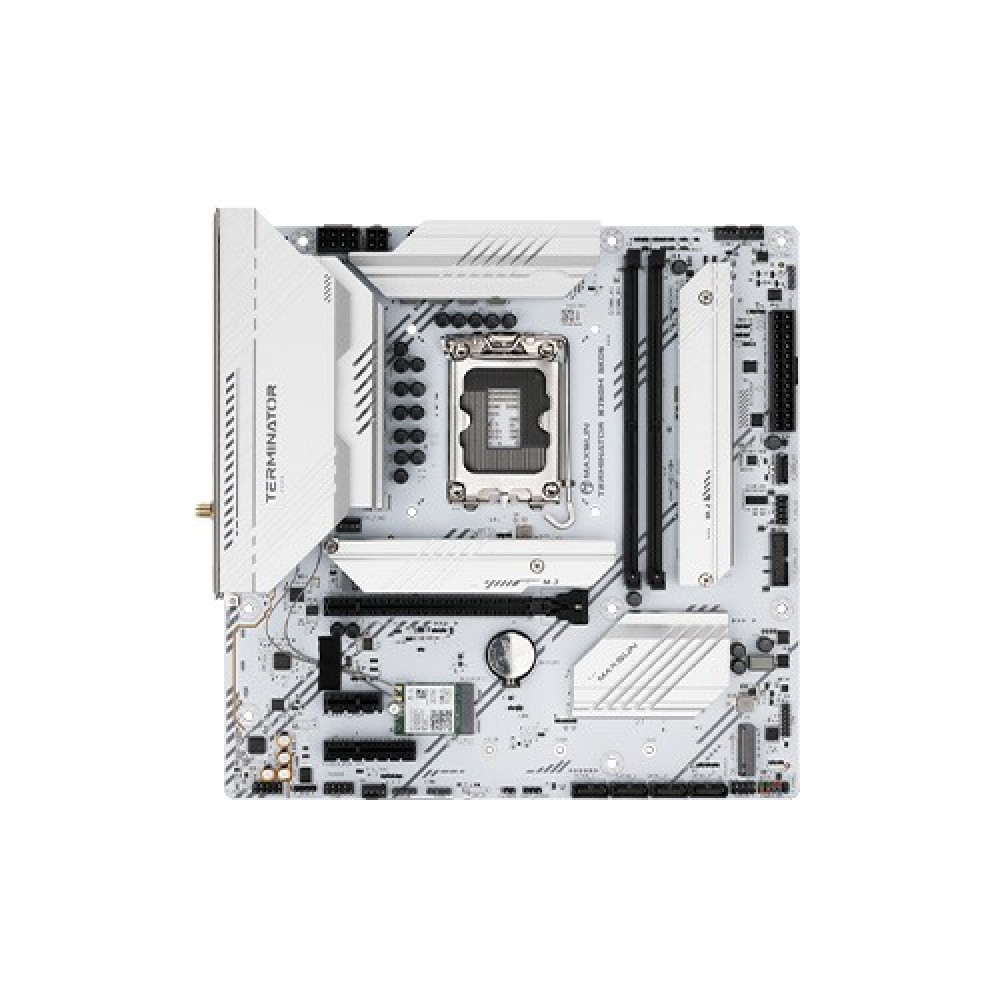

MAXSUN INTEL MOTHERBOARD B760M DDR5 TERMINATOR SERIES,GKD5 ICE
Key Features
Chipset - Intel B760M
Supported CPU - 12th/13th/14th Gen
Socket - LGA1700
Memory Max. - 96GB
Specification
| Mainboard | |
| Chipset | Intel B760 High-speed chipset |
| Memory | |
| Memory Specifications | Dual DDR5 slots capable of reaching speeds up to 8000MHz |
| Storage | |
| Storage | 3 x M.2 slots (PCIe X4/X2 channel SSD only) 1 x M.2_WIFI slot (CNVI network card only) 4 x SATA3.0 ports |
| Display | |
| Display | 1 x DP1.4 interface (up to 7680x4320@30Hz) 1 x HDMI2.0 interface (up to 4096x2160@60Hz) |
| Networking & Connectivity | |
| Connectivity | 2.5G network card for high-speed connections |
| Bluetooth | v5.3 |
| Network Interface | Integrated REALTEK 8125B NIC chip (10/100/1000/2500Mbit) 1 x on-board RJ45 port Supports PXE diskless boot and UEFI diskless boot |
| Audio & Microphone | |
| Audio | Integrated REALTEK ALC897 sound card chip |
| Battery And Power | |
| TDP | PL1: 241W; PL2: 253W |
| Power | 8+1+1 phase power design for stable performance |
| Ports | |
| Power Connector | Includes a (1 x 24)-Pin ATX power connector and an (8+4)-Pin +12V power connector for stable power delivery. |
| External I/O Ports | 1 x PCIEX16 5.0 slot 1 x PCIEX4 3.0 open slot |
| USB | Rear ports: 2 x USB3.2 GEN2 ports, 6 x USB2.0 ports Front interface: 1 x USB3.2 Gen2x2 Type-C (20G), 1 set (2) USB3.2 GEN1 pins |
| Special Features | |
| RGB | Yes |
| Others | |
| Other Features | Aesthetic: Modern white theme appearance |
| Physical Specification | |
| Color | White |
| Form Factor | Micro-ATX, 245mm x 245mm |
| Technical Info | |
| Model | Terminator B760M GKD5 ICE |
| Brands | MAXSUN |
