Basic Information | |
Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors |
Chipset | A520 |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Form Factor | microATX 24.4cm x 24.4cm |
Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers |
Expansion Slots | |
PCI | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots |
M.2 Socket | Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports |
Memory | |
Type | Dual Channel DDR4 Memory Technology |
Slots | 2 x DIMM |
Supported Memory | 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory |
Maximum Memory | 128GB |
Graphics | |
Graphics | Graphics specifications may vary between CPU types |
Connector & Ports | |
HDMI | 1 x HDMITM port |
Display Port (s) | 1 x DisplayPort |
D-Sub (s) | 1 x D-Sub |
USB (s) | Rear USB: Total 6 ports 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB: Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
LAN Port (s) | 1 x Realtek 1Gb Ethernet ASUS LANGuard |
Supported Storage | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset 4 x SATA 6Gb/s ports Support Raid 0, 1, 10 |
Audio | 3 x Audio jacks Back Panel 1 x Front Panel Audio header (AAFP) |
Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
TPM (Trusted Platform Module ) | 1 x SPI TPM header |
Others | |
Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - VRM heatsink design AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers |
Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 |
Warranty Information | |
Manufacturing Warranty | 03-Year Warranty |

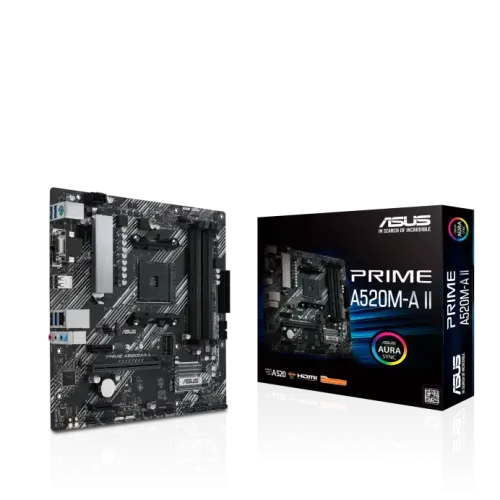

The Asus PRIME A520M-A II is a micro ATX motherboard designed for the AMD A520 chipset, specifically for Ryzen AM4 processors. It features a range of connectivity options and support for various components to meet the needs of both daily users and DIY PC builders. The motherboard supports AMD AM4 socket processors, including the Ryzen 5000 Series, 4000 G-Series, and 3000 Series desktop processors. This provides users with a wide range of options when it comes to choosing a compatible CPU. To ensure stable performance and prevent overheating, the Asus PRIME A520M-A II incorporates comprehensive cooling features. These include a VRM heatsink, PCH heatsink, and Fan Xpert 2+ technology, which helps to optimize fan speeds and keep the system cool during intense usage. The motherboard offers an M.2 slot, which supports high-speed NVMe storage for faster data transfer. It also includes 1 Gb Ethernet for reliable network connectivity and USB 3.2 Gen 1 Type-A ports for fast data transfer with compatible devices. The Asus PRIME A520M-A II is its supports for Aura Sync RGB lighting. The motherboard includes onboard RGB headers and addressable Gen 2 headers, allowing users to connect RGB LED strips and synchronize the lighting effects with other Aura Sync-capable hardware. The Asus PRIME A520M-A II is a well-engineered motherboard that provides a solid foundation for building a Ryzen-based system. With its power design, cooling solutions, and performance tuning options, it offers a range of features to enhance the overall computing experience.
