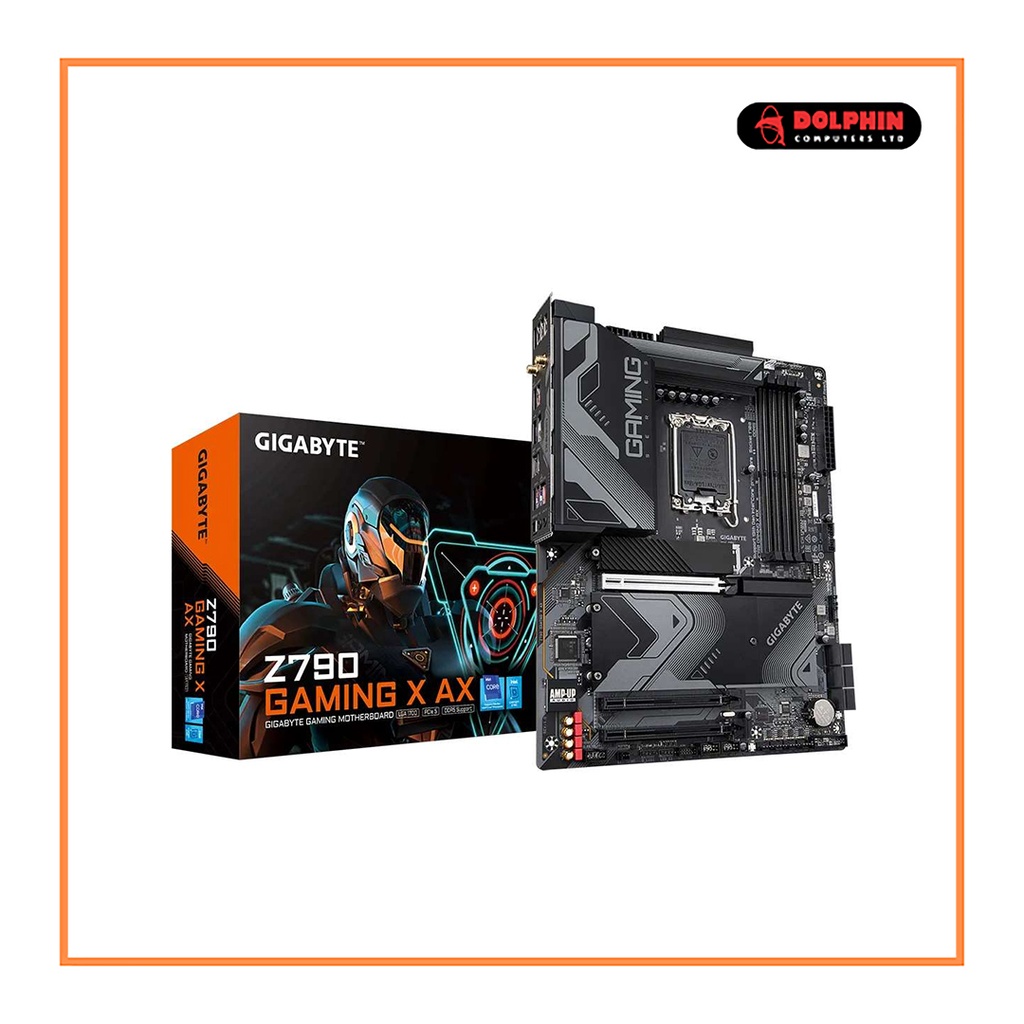

GIGABYTE Z790 GAMING X AX ATX Motherboard

https://www.dolphin.com.bd/web/image/product.template/16799/image_1920?unique=57c235a

Key Features
Model: Z790 GAMING X AX
Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM: 4 x DDR5 DIMMs, up to 7600(O.C.)
Graphics Output: 1 x HDMI, 1 x DisplayPort
Features: 2.5GbE LAN & Wi-Fi 6E 802.11ax

35,677.50 ৳ 35677.5 BDT 35,677.50 ৳

35,677.50 ৳

Not Available For Sale

    This combination does not exist.


    Share :

    Specification

    Basic Information
    Supported CPULGA1700 socket: Support for the 14th,13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
    L3 cache varies with CPU
    ChipsetIntel Z790 Express Chipset
    BIOS1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorATX Form Factor; 30.5cm x 24.4cm
    AudioRealtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    Support for S/PDIF Out
    Expansion Slots
    PCICPU:
    1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    Chipset:
    2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
    Support for AMD CrossFire technology (PCIEX16 and PCIEX4)
    Memory
    TypeDDR5
    Slots4 x DIMM sockets
    Supported MemorySupport for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Memory128GB (32 GB single DIMM capacity)
    Graphics
    GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.0 version and HDCP 2.3.
    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60
    * Support for DisplayPort 1.2 version and HDCP 2.3
    Connector & Ports
    HDMI1 x HDMI
    Display Port (s)1 x DisplayPort
    USB (s)Chipset:
    1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
    1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
    2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+2 USB 2.0 Hubs:
    8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    LAN Port (s)Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    Wireless Communication moduleIntel Wi-Fi 6E AX211
    WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    BLUETOOTH 5.3
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    Supported StorageCPU:
    1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Chipset:
    2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
    1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
    6 x SATA 6Gb/s connectors
    RAIDRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    Audio2 x audio jacks
    Internal I/O Ports1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x CPU fan header
    1 x water cooling CPU fan header
    3 x system fan headers
    1 x system fan/water cooling pump header
    2 x addressable LED strip headers
    2 x RGB LED strip headers
    4 x M.2 Socket 3 connectors
    6 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C header, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    2 x Thunderbolt add-in card connectors
    1 x reset button
    1 x Q-Flash Plus button
    1 x Clear CMOS button
    1 x reset jumper
    1 x Clear CMOS jumper
    TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    Others
    Special FeaturesSupport for GIGABYTE Control Center (GCC)
    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup
    Bundled SoftwareNorton Internet Security (OEM version)
    LAN bandwidth management software
    Warranty Information
    Manufacturing Warranty3 years

    Description

    GIGABYTE Z790 GAMING X AX ATX Motherboard

    The GIGABYTE Z790 GAMING X AX ATX Motherboard comes with Intel Socket LGA 1700 that supports 13th and 12th Gen Series Processors. It delivers unparalleled performance with twin 16+1+2 Phases Digital VRM Solution. The motherboard comes with 4x DIMMs with XMP 3.0 Memory Module Support. The sockets support up to 128 GB (32 GB single DIMM capacity) of system memory. The motherboard is equipped with the PCIe 5.0 x16 slot and M.2 socket designed to optimize multitasking and large workloads, which is also ready for a new PCIe 5.0 graphics card or storage device. It supports new PCIe 5.0 SSD with up to type 25110 M.2 slot designed to provide high power M.2 PCIe 5.0 SSD solutions. The GIGABYTE Z790 GAMING X AX is equipped with Intel 2.5Gb Ethernet provides an immediate boost to overall network performance, smooth video editing, and fast data transfers. Wi-Fi 6E brings the ability to conduct AR/VR experiences, get creative with fewer dropped connections, and download large files at faster speeds without lag. The advanced cooling solution also provides the perfect aesthetic heatsink design to keep your PC at an optimal temperature, preventing you from unexpected system crashes during the creative process. The GIGABYTE Z790 GAMING X AX ATX Motherboard comes with 3 years of warranty.
