Price:
18,500.00 ৳

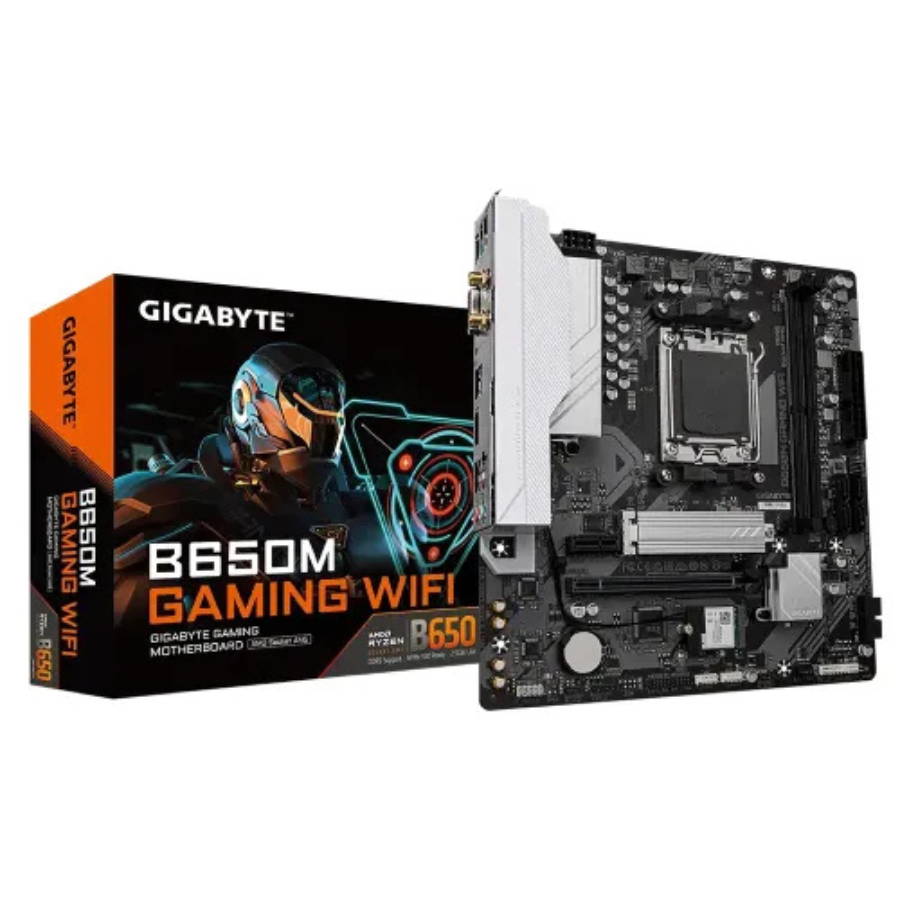

GIGABYTE MOTHERBOARD B650M GAMING WIFI AMD CHIP SET SOCKET AM5,DDR5
Key Features
Model: B650M GAMING WIFI
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 2 x DDR5, up to 128GB, 6400(OC)
Graphics Output: 1x HDMI, 1 x D-Sub
Features: Realtek 2.5GbE LAN & Realtek RTL8821CE WiFi
Specification
| Basic Information | |
| Supported CPU | AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors |
| Chipset | AMD B650 |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Form Factor | Micro ATX Form Factor; 24.0cm x 22.5cm |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| Expansion Slots | |
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| M.2 Socket | 1 x M.2 connector |
| Memory | |
| Type | DDR5 |
| Slots | 4 DIMMs |
| Supported Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
| Maximum Memory | Up to 128 GB (64 GB single DIMM capacity) |
| Graphics | |
| Graphics | Onboard Graphics Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
| Connector & Ports | |
| HDMI | 1x HDMI |
| D-Sub (s) | 1 x D-Sub |
| USB (s) | CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 2 x USB 2.0/1.1 ports available through the internal USB header |
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication module | Wireless Communication module AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE) - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 4.2 - Support for 11ac wireless standard |
| Supported Storage | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: - AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Audio | 3 x Audio jacks |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) |
| Others | |
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x HDMI port 1 x RJ-45 port 3 x audio jacks |
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Warranty Information | |
| Manufacturing Warranty | 3 Years Warranty |
| Brands | Gigabyte |
