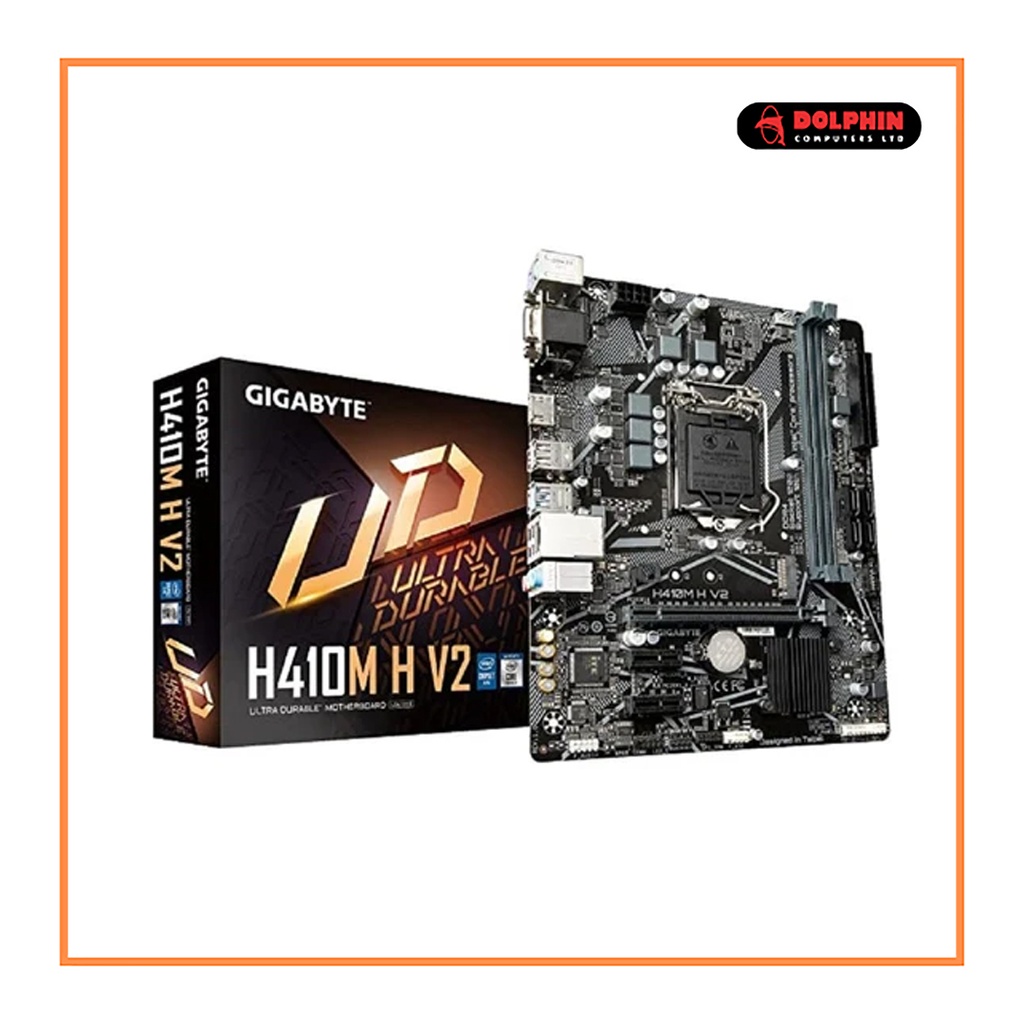

Gigabyte H410M H V2 10th Gen Micro ATX Motherboard

https://www.dolphin.com.bd/web/image/product.template/10376/image_1920?unique=d4b6fb0

Model: H410M H V2
Supported CPU: 10th Gen Intel Core Processors
Supported RAM: DDR4, 2 DIMMs, up to 64 GB
Graphics Output: 1 x D-Sub, 1 x HDMI
Features: Intel GbE LAN with cFosSpeed

9,139.48 ৳ 9139.48 BDT 9,139.48 ৳

9,139.48 ৳

Not Available For Sale

    This combination does not exist.


    Share :

    Specification

    Basic Information
    Supported CPUSupport for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
    ChipsetIntel H470 Express Chipset
    BIOS1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorMicro ATX Form Factor: 22.6cm x 18.5cm
    AudioRealtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    Expansion Slots
    PCI1 x PCI Express x16 slot, running at x16
    2 x PCI Express x1 slots
    (The PCI Express slots conform to PCI Express 3.0 standard.)
    Supports up to ASPM L1.2 power management protocols.
    Memory
    TypeDDR4
    Slots2 x DIMM
    Supported MemoryIntel Core i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
    Intel Core i5/i3/Pentium/Celeron processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Memory64GB (32 GB single DIMM capacity)
    Graphics
    GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.
    Max Shared Memory512MB
    Connector & Ports
    HDMI1 x HDMI port
    D-Sub (s)1 x D-Sub port
    USB (s)Chipset:
    4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    LAN Port (s)Intel GbE LAN chip (1 Gbit/100 Mbit)
    Supported Storage1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
    4 x SATA 6Gb/s connectors
    Intel Optane Memory Ready
    M.2 connectors support up to ASPM L1.2 PCIe power management protocols.
    RAIDSupport for RAID 0, RAID 1, RAID 5, and RAID 10
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x system fan header
    1 x RGB LED strip header
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x serial port header
    1 x Clear CMOS jumper
    TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    Others
    Special FeaturesSupport for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    Ambient LED
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Smart Backup
    System Information Viewer
    Support for Q-Flash
    Support for Xpress Install
    Bundled SoftwareNorton Internet Security (OEM version)
    cFosSpeed
    Warranty Information
    Manufacturing Warranty03 Years

    Description

    GIGABYTE H410M H V2 10th Gen Micro ATX Motherboard

    The GIGABYTE H410M H V2 10th & Gen Micro ATX Motherboard is made for Intel 10th and Generation processors. The GIGABYTE H410M H V2 Gen Motherboard has two DIMM RAM slots available which can support Bus Speeds of up to 2933MHz. The motherboard supports HDMI and D-Sub graphical output ports and can display two displays at once. The GIGABYTE motherboard also comes with 8-Channel HD Audio with High-Quality Audio Capacitors which provide crystal clear sound all around. The mother also provides you with NVMe PCIe Gen3 x4 2280 M.2 Connector, Intel GbE LAN with cFosSpeed Internet Accelerator Software, and more.

    CONNECTIVITY

    Intel GbE LAN features cFosSpeed, a network traffic management application that helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

    NVMe PCIe Gen3 x4 2280 M.2 Connector

    GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.

    COOLING

    With Smart Fan, 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan, 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly. Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature, all of it can be customized to your liking.

    AUDIO

    GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high-resolution and high-fidelity audio to provide the most realistic sound effects for gamers. GIGABYTE motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level.

    GIGABYTE EXCELLENCE

    The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier-to-use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
