Price:
6,000.00 ৳

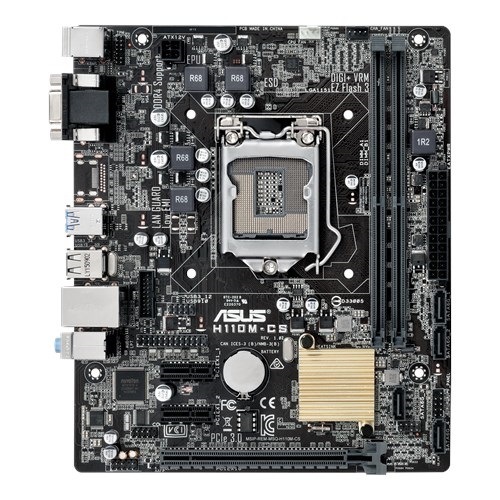

ASUS H110M-CS MOTHERBOARD,INTEL H110 CHIPSET 7TH/6TH GEN
Key Features
Model: H110M-CS
CPU: 7th/6th Generation Intel Processors
Chipset: Intel® H110
2 x DDR4 DIMM
3 x PCI Express slot
Tags :
Specification
Basic Information | |
| Supported CPU | Intel® Socket 1151 for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 |
| Chipset | Intel® H110 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Quick Note, Last Modified Log, F12 PrintScreen function, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Form Factor | uATX Form Factor 8.3 inch x 7.1 inch ( 21.08 cm x 18.03 cm ) |
Expansion Slots | |
| PCI | 1 x PCIe 3.0/2.0 x16 (x16 mode) 2 x PCIe 2.0 x1 |
Memory | |
| Type | DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory |
| Slots | 2 x DIMM |
| Supported Memory | Due to Intel® chipset limitation, DDR4 2400MHz memory frequency is only supported by 7th Generation Intel® processors. Higher memory modules will run at the maximum transfer rate of DDR4 2400MHz. ** Due to Intel® chipset limitation, DDR4 2133MHz and higher memory modules on 6th Generation Intel® processors will run at the maximum transfer rate of DDR4 2133MHz. |
| Maximum Memory | The maximum memory frequency supported varies by processor |
Graphics | |
| Graphics | VGA output support : RGB port - Supports RGB with max. resolution 1920 x 1200 @ 60 Hz |
| Max Shared Memory | 1024 MB |
Connector & Ports | |
| USB (s) | Intel® H110 chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board) Intel® H110 chipset : 6 x USB 2.0/1.1 port(s) (4 at back panel, black, 2 at mid-board) |
| LAN Port (s) | Realtek® RTL8111H |
| Supported Storage | Intel® H110 Chipset : 4 x SATA 6Gb/s port(s), gray, Intel® Rapid Storage Technology supports*2 |
| Audio | Realtek® ALC887-VD2 8-Channel High Definition Audio CODEC *3 - Supports : Jack-detection, Front Panel Jack-retasking Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity |
| Internal I/O Ports | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 1 x LPT header 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Chassis intrusion header |
| TPM (Trusted Platform Module ) | 1 x 14-1 pin TPM connector |
Warranty Information | |
| Manufacturing Warranty | 03 Years |
Description
Asus H110M-CS 7th & 6th gen supreme motherboard compatible with Intel (Socket 1151) i3, i5 & i7 processor. This ultrafast dual channel max DDR4 supported maximum 32GB memory and it has the capability of fast SATA supported storage and Advanced hardware safeguards for all-round protection. If we consider the graphics of this LED lighting board, it will support Intel HD graphics having the maximum resolution of 1920 x 1200 @ 60 Hz for VGA output. This Media-acclaimed UEFI BIOS with EZ Flash 3 board has Fan Xpert advanced fan controls for ultimate cooling and silent performance and Easy PC DIY with safe motherboard-mounting.
