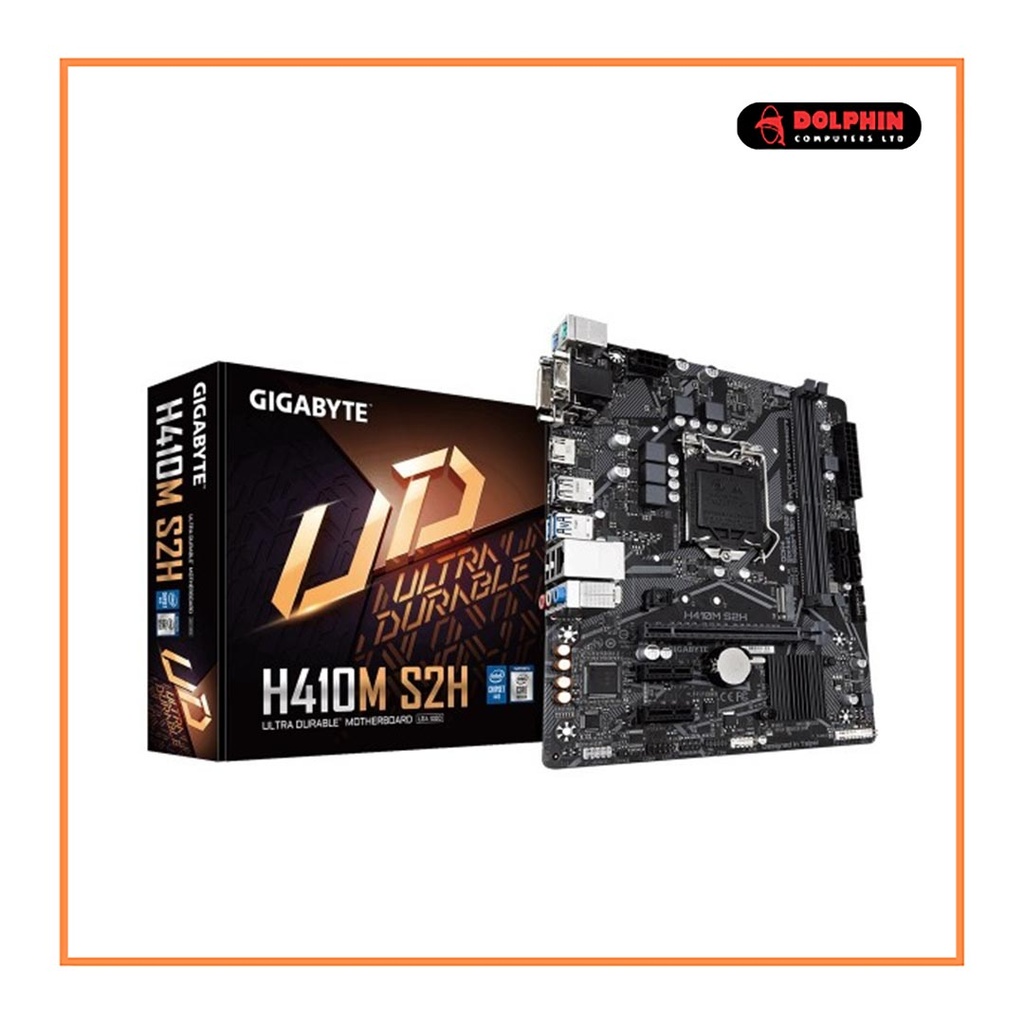

Gigabyte H410M S2H 10th Gen Micro ATX Motherboard

https://www.dolphin.com.bd/web/image/product.template/16787/image_1920?unique=ad80b6f

Key Features:

Model: Gigabyte H410M S2H
Intel Socket LGA1200 for 10th Gen Processors
Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
8-Channel HD Audio with High-Quality Audio Capacitors
Ultra-Fast M.2 with PCIe Gen3 X2 & SATA Interface

7,912.91 ৳ 7912.91 BDT 7,912.91 ৳

7,912.91 ৳

Not Available For Sale

    This combination does not exist.


    Share :

    Specification

    Basic Information
    Supported CPUSupport for 10th Generation Intel Core i9 processors/ Intel Core i7 processors/ Intel Core i5 processors/ Intel Core i3 processors/ Intel Pentium processors/ Intel Celeron processors in the LGA1200 package
    L3 cache varies with CPU
    ChipsetIntel H410 Express Chipset
    BIOS1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorMicro ATX Form Factor; 22.6cm x 18.5cm
    Expansion Slots
    PCI1 x PCI Express x16 slot, running at x16
    2 x PCI Express x1 slot
    M.2 Socket1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
    Memory
    TypeDual-channel architecture
    Slots2 x DDR4 DIMM
    Supported MemoryIntel Core i9/ i7 processors:
    Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules
    Intel Core i5/ i3/ Pentium /Celeron processors:
    Support for DDR4 2666/ 2400/ 2133 MHz memory modules
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Memory64 GB
    Graphics
    GraphicsIntegrated Graphics Processor-Intel® HD Graphics support:
    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    Max Shared Memory512MB
    Connector & Ports
    HDMI1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    D-Sub (s)1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    DVI-D (s)1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    USB (s)4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    LAN Port (s)Realtek GbE LAN chip (1000/100 Mbit)
    Supported Storage1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x2 SSD support)
    4 x SATA 6Gb/s connectors
    AudioRealtek ALC887 codec
    High Definition Audio
    2/4/5.1/7.1-channel
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    4 x SATA 6Gb/s connectors
    1 x CPU fan header
    1 x system fan header
    1 x RGB LED strip header
    1 x front panel header
    1 x front panel audio header
    1 x speaker header
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x serial port header
    1 x Clear CMOS jumper
    TPM (Trusted Platform Module )1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    Others
    Special FeaturesSupport for APP Center
    @BIOS
    Ambient LED
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Smart Backup
    System Information Viewer
    Support for Q-Flash
    Support for Xpress Install
    Bundled SoftwareSupport for Windows 10 64-bit
    Warranty Information
    Manufacturing Warranty03 Years

    Description

    Gigabyte H410M S2H 10th Gen Micro ATX Motherboard

    Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience. GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential. Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs. With Smart Fan, 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan, but 5 more hybrid fan headers that support both PWM and Voltage mode fans have also been introduced to make the motherboard more liquid cooling friendly. Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking. GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level. Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. GIGABYTE motherboards also feature special anti-surge IC that protect your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes. There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuits and system malfunction caused by humid and damp conditions. GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance. The BIOS is essential for users during the initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
