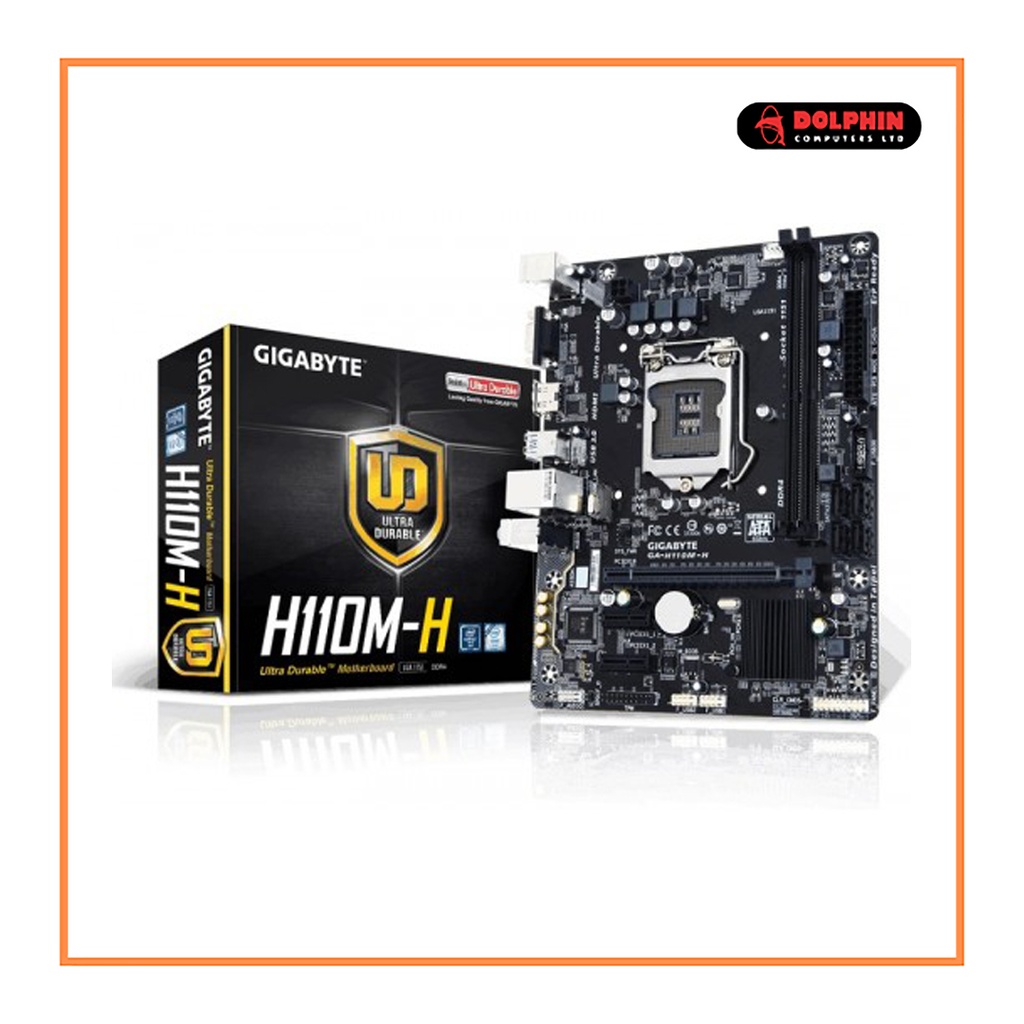

GIGABYTE GA-H110M/H150-S2PV DDR4 MOTHER BOARD 01 Replace+2 year service warranty

https://www.dolphin.com.bd/web/image/product.template/10371/image_1920?unique=11034f0

Supports 7th / 6th Generation Intel® Core™ Processors
Dual Channel DDR4, 2 DIMMs
8-channel HD Audio with High Quality Audio Capacitors
Audio Noise Guard with LED Trace Path Lighting
DVI-D, D-sub ports for multiple display
Realtek® GbE LAN with cFosSpeed Internet Accelerator Software
All new GIGABYTE™ APP Center, simple and easy use
GIGABYTE UEFI DualBIOS™ Technology
Support Intel® Small Business Basics

8,974.87 ৳ 8974.87 BDT 8,974.87 ৳

8,974.87 ৳

Not Available For Sale

    This combination does not exist.


    Share :

    Specification

    Basic Information
    Supported CPUSupport for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
    * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
    L3 cache varies with CPU
    ChipsetIntel® H110 Express Chipset
    BIOS1 x 64 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorMicro ATX Form Factor; 22.6cm x 17.4cm
    Expansion Slots
    PCI1 x PCI Express x16 slot, running at x16
    (The PCI Express x16 slot conform to PCI Express 3.0 standard.)
    2 x PCI Express x1 slots
    (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
    Memory
    TypeDual channel DDR4 memory architecture
    Slots2 x DIMM
    Supported MemorySupport for DDR4 2400/2133 MHz memory modules
    Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
    Maximum Memory32 GB
    Graphics
    Graphics1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
    * Support for HDMI 1.4 version.
    Max Shared Memory1024 MB
    Connector & Ports
    HDMI1 x HDMI
    D-Sub (s)1 x D-Sub
    USB (s)Chipset:
    4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    LAN Port (s)Realtek® GbE LAN chip (10/100/1000 Mbit)
    Supported StorageChipset:
    4 x SATA 6Gb/s connectors
    AudioRealtek® ALC887 codec
    High Definition Audio
    2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    Support for S/PDIF Out
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 4-pin ATX 12V power connector
    4 x SATA 6Gb/s connectors
    1 x CPU fan header
    1 x system fan header
    1 x front panel header
    1 x front panel audio header
    1 x S/PDIF Out header
    1 x USB 3.0/2.0 header
    2 x USB 2.0/1.1 headers
    1 x Clear CMOS jumper
    TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header
    Warranty Information
    Manufacturing Warranty03 Years

    Description

    Gigabyte GA-H110M-H Micro ATX ultra durable motherboard has the compatibility with 7th/6th i3, i5 & i7 processors. This board also supports dual channel DDR4 maximum 32GB memory and dual Ultra-Fast SATA interface. Focusing on the graphics, it has integrated Intel HD graphics with 1GB shared graphics memory containing the resolution of 1920x1200@60 Hz for D-Sub and 4096x2160@24 Hz for HDMI port. This basic motherboard has the facility of Audio Noise Guard with High Quality Audio Capacitors and Realtek® GbE LAN with cFosSpeed Internet Accelerator Software. This board also contain All new GIGABYTE™ APP Center for simple and easy use and support Intel® Small Business Basics.
