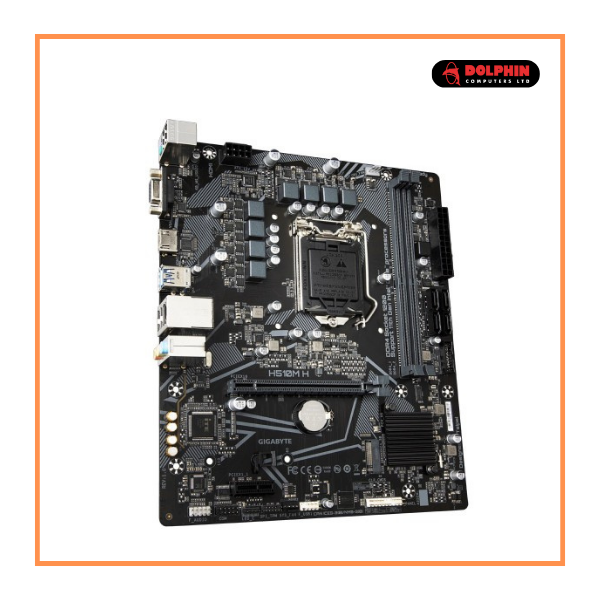

Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard

https://www.dolphin.com.bd/web/image/product.template/7069/image_1920?unique=9fe786b

Key Features:

Model: H510M H
Supports 11th and 10th Gen Intel Core Processors
Dual-Channel DDR4, 2 DIMMs
Ultra-Fast M.2 with PCIe Gen3 X4
GIGABYTE Exclusive 8118 Gaming LAN

9,900.00 ৳ 9900.0 BDT 9,900.00 ৳

9,900.00 ৳

Not Available For Sale

    This combination does not exist.


    Share :

    Basic Information

    Supported CPU11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors
    10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors
    * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
    ChipsetIntel H510 Express Chipset
    BIOS1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Form FactorMicro ATX Form Factor; 24.4cm x 21.0cm

    Expansion Slots

    PCI1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
    * Supported by 11th Generation processors only.
    1 x PCI Express x1 slot (PCIEX1_1)
    (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
    M.2 Socket1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
    4 x SATA 6Gb/s connectors
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

    Memory

    TypeDual channel memory architecture
    Slots2 x DDR4 DIMM
    Supported Memory11th Generation Intel Core i9/i7/i5 processors:
    Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
    10th Generation Intel Core i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
    10th Generation Intel Core i5/i3/Pentium/Celeron processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
    2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    Maximum Memory64 GB (32 GB single DIMM capacity)

    Graphics

    GraphicsIntegrated Graphics Processor-Intel HD Graphics support:
    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.3.Connector & Ports
    HDMI1 x HDMI™ port
    USB (s)Chipset:
    4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    LAN Port (s)Realtek GbE LAN chip (1 Gbit/100 Mbit)
    Supported Storage1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
    4 x SATA 6Gb/s connectors
    * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
    Audio3 x audio jacks
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x system fan header
    1 x RGB LED strip header
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    1 x USB 2.0/1.1 header
    1 x serial port header
    1 x Clear CMOS jumper
    Special FeaturesSupport for APP Center
    @BIOS
    Ambient LED
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    Smart Backup
    System Information Viewer
    Support for Q-Flash
    Support for Xpress Install

    Warranty Information

    Manufacturing Warranty3 Years Replacement Warranty (*terms and conditions apply)

    Gigabyte H510M H Intel 10th and 11th Gen Micro ATX Motherboard

    Gigabyte H510M H Motherboard supports 11th and 10th Gen Intel Core Series Processors and comes with Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs. It features Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface. It is powered by GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users with the most comprehensive features and the fastest and smoothest Internet experience. GIGABYTE motherboards use high-end audio capacitors. These high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. It features an audio noise guard that essentially separates the board’s sensitive analogue audio components from potential noise pollution at the PCB level. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. The Smart Fan 6 contains several unique cooling features that ensure the gaming PC maintain their performance while staying cool and quiet. Each fan headers support PWM and DC fan and Water cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection. The fan can stop completely below users' specified temperature point. It supports GIGABYTE APP Center and you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version. It is very simple and easy to use. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning. It has 3 years Warranty.
