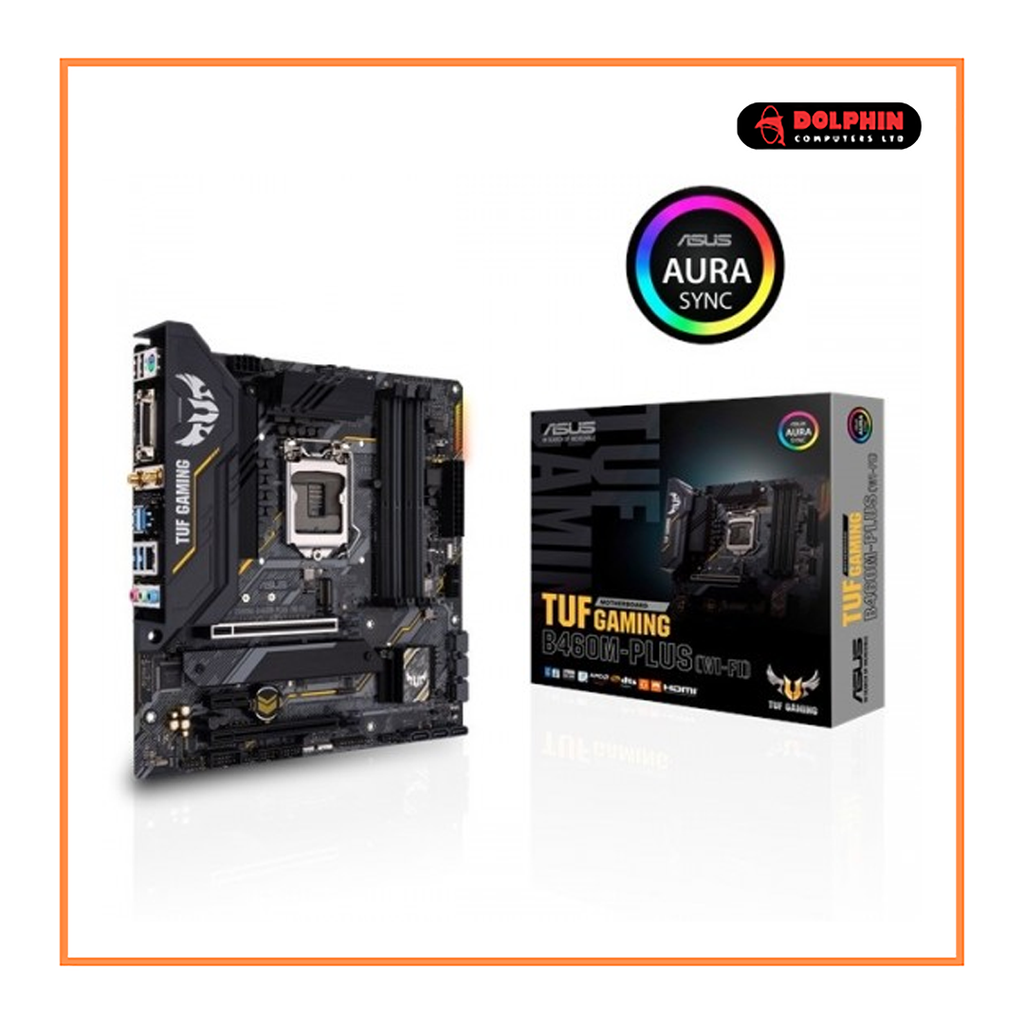

Asus TUF Gaming B460M-Plus Wi-Fi Micro-ATX Motherboard

https://www.dolphin.com.bd/web/image/product.template/6662/image_1920?unique=a58e0fa



Brand: Asus
Model: Asus TUF Gaming B460M-Plus Wi-FI
Intel LGA 1200 socket
Aura Sync RGB Lighting
Made for Online Gaming
Enhanced power solution



14,430.00 ৳ 14430.0 BDT 14,430.00 ৳

14,430.00 ৳

Not Available For Sale

    This combination does not exist.


    Share :

    Specification

    Basic Information
    Supported CPUIntel Socket 1200 for 10th Gen Intel Core, Pentium Gold, and Celeron Processors
    Supports Intel 14 nm CPU
    Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
    ChipsetIntel B460 Express Chipset
    BIOS128 Mb Flash ROM, UEFI AMI BIOS
    Form FactormATX Form Factor: 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
    Expansion Slots
    PCIIntel 10th Gen Processors
    1 x PCIe 3.0 x16 (x16 mode)
    Intel B460 Chipset
    1 x PCIe 3.0 x16 (x4 mode)
    1 x PCIe 3.0 x1
    Memory
    TypeDual channel memory architecture
    Slots4 x DDR4 DIMM
    Supported MemorySupport for DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Maximum Memory128 GB
    Graphics
    GraphicsIntegrated Graphics Processor
    1 x DisplayPort 1.4
    1 x HDMI 1.4b
    1 x DVI-D
    Supports AMD 2-Way CrossFireX Technology
    Connector & Ports
    HDMI1 x HDMI 1.4b
    Display Port (s)1 x DisplayPort 1.4 at max. resolution of 4096 x 2304 @60Hz
    DVI-D (s)1 x DVI-D
    USB (s)Rear USB Port ( Total 6 )
    4 x USB 3.2 Gen 1 port(s)
    2 x USB 2.0 port(s)(2 x Type-A)
    Front USB Port ( Total 6 )
    2 x USB 3.2 Gen 1 port(s)
    4 x USB 2.0 port(s)
    LAN Port (s)Intel I219-V 1Gb Ethernet
    Supported StorageTotal supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
    Intel B460 Chipset :
    1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s port(s)
    Support Raid 0, 1, 5, 10
    Intel Rapid Storage Technology supports
    Intel Optane Memory Ready
    AudioRealtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
    - Supports: Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    Audio Feature:
    - Exclusive DTS Custom for GAMING Headsets.
    - Audio cover
    - Audio Shielding
    - Dedicated audio PCB layers
    - Premium Japanese audio capacitors
    Internal I/O Ports1 x CPU Fan connector(s)
    1 x CPU OPT Fan connector(s)
    2 x Chassis Fan connector(s)
    2 x Aura RGB Strip Headers
    1 x Addressable Gen 2 header(s)
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
    6 x SATA 6Gb/s connector(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin EATX 12V Power connectors
    1 x Front panel audio connector(s) (AAFP)
    1 x System panel(s) (Chassis intrusion header is inbuilt)
    1 x Clear CMOS jumper(s)
    1 x COM port header
    Others
    Special FeaturesASUS TUF PROTECTION
    - ASUS DIGI+ VRM
    - ASUS Enhanced DRAM Overcurrent Protection
    - ASUS ESD Guards
    - TUF LANGuard
    - ASUS Overvoltage Protection
    - SafeSlot Core+
    - ASUS Stainless-Steel Back I/O
    ASUS Q-Design
    - ASUS Q-DIMM
    - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
    - ASUS Q-Slot
    ASUS Thermal Solution
    - Aluminum M.2 heatsink
    - Aluminum heatsink design
    AURA Sync
    - Standard RGB header(s)
    - Addressable Gen 2 RGB header(s)
    Warranty Information
    Manufacturing Warranty03 Years

    Description

    Asus TUF Gaming B460M-Plus Wi-Fi Intel 10th Gen Micro-ATX Motherboard

    TUF Gaming B460M-PLUS (Wi-Fi) distills essential elements of the latest Intel platform and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution, and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability. When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case. With upgraded power delivery and comprehensive cooling options to fuel the latest Intel® CPUs, plus support for faster memory and storage, TUF Gaming B460M-PLUS (Wi-Fi) is the perfect foundation for your next high-core-count battle rig. TUF Gaming motherboards are designed to be easy to set up and configure just the way you want even for first-time builders. The TUF Gaming Alliance eco-system makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity. TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits, and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger. TUF Gaming B460M-PLUS (Wi-Fi) provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere. The Intel WiFi 6 AX200 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6. Intel Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer. Turbo LAN with cFosSpeed traffic-shaping technology allows you to configure application priority via an intuitive interface and reduces network lag.
