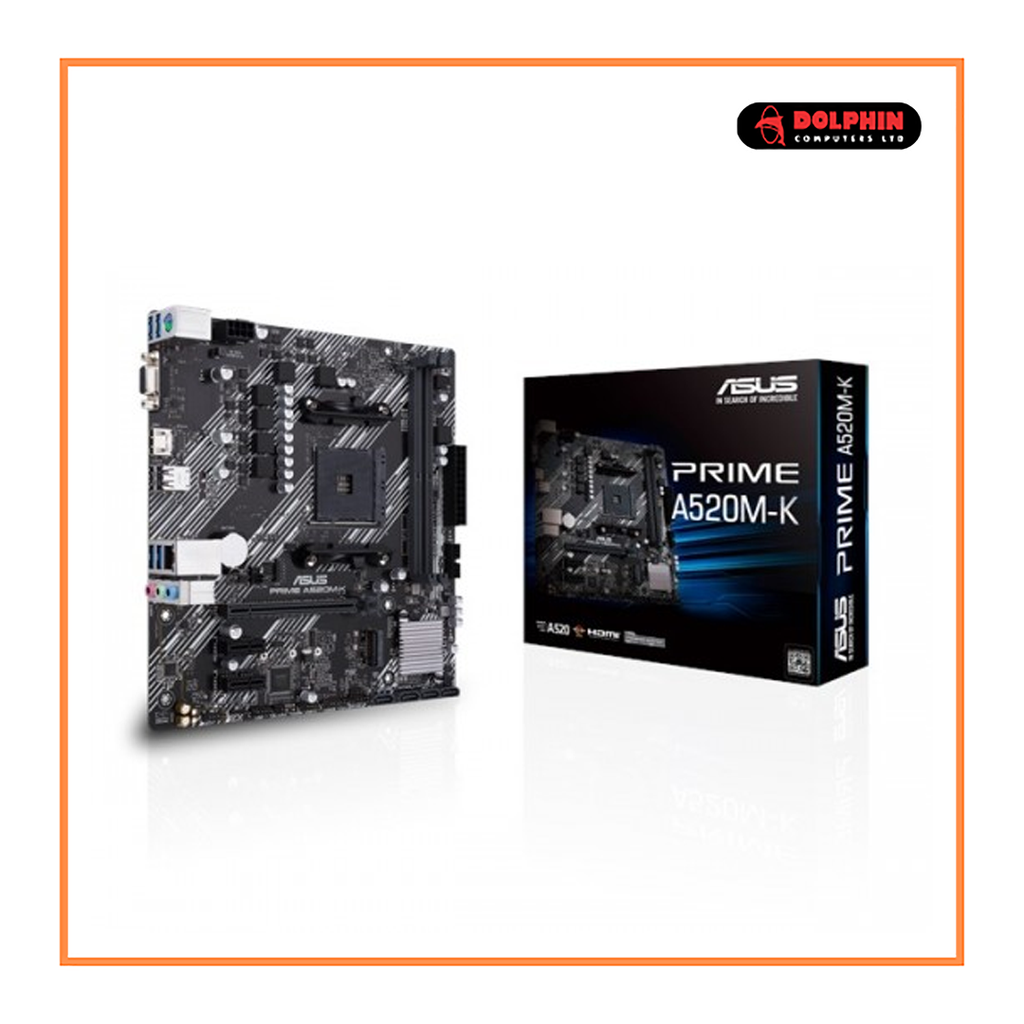

Asus Prime A520M-K Micro-ATX AMD Motherboard

https://www.dolphin.com.bd/web/image/product.template/6950/image_1920?unique=a58e0fa



Brand: Asus
Model: Asus Prime A520M-K
AMD AM4 Socket for Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
5X Protection III
Ultrafast connectivity
Comprehensive cooling



8,690.00 ৳ 8690.0 BDT 8,690.00 ৳

8,690.00 ৳

Not Available For Sale

    This combination does not exist.


    Share :

    Specification

    Basic Information
    Supported CPUAMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
    ChipsetAMD A520
    BIOS256 MB Flash ROM, UEFI AMI BIOS
    Form FactormATX Form Factor
    8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
    Expansion Slots
    PCIAMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
    1 x PCIe 3.0 x16 (x16 mode)
    AMD A520 Chipset
    2 x PCIe 3.0 x1
    Memory
    TypeDual Channel DDR4 Memory Technology
    Slots2 x DIMM
    Supported Memory4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
    Maximum Memory64GB, DDR4
    Connector & Ports
    HDMI1 x HDMI 2.1 (4K@60Hz)
    D-Sub (s)1 x D-Sub
    USB (s)Rear USB Port ( Total 6 )
    4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
    2 x USB 2.0 port(s)(2 x Type-A)

    Front USB Port ( Total 6 )
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    4 x USB 2.0 port(s)(4 x Type-A)
    LAN Port (s)Realtek RTL8111H 1GB Ethernet
    ASUS LANGuard
    Supported StorageTotal supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
    AMD Ryzen 5000 Series/ 3000 Series Desktop Processors :
    1 x M.2_1 socket 3, with M Key, Type 2242/2260/ 2280 /22110(PCIE 4.0 x4 and SATA modes) storage devices support
    AMD Ryzen 4000 G-Series Processors :
    1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
    AMD B550 Chipset :
    1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
    4 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10
    AudioRealtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    Audio Feature :
    - Audio Shielding
    - Dedicated audio PCB layers
    * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
    Internal I/O Ports1 x CPU Fan connector(s)
    1 x Chassis Fan connector(s)
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    4 x SATA 6Gb/s connector(s)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin EATX 12V Power connectors
    1 x Front panel audio connector(s) (AAFP)
    1 x Clear CMOS jumper(s)
    1 x System panel connector
    1 x COM port header
    1 x Speaker connector

    Back I/O Ports:
    1 x PS/2 keyboard/mouse combo port(s)
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.2 Gen 1 (blue) Type-A
    2 x USB 2.0
    3 x Audio jack(s)
    TPM (Trusted Platform Module )1 x SPI TPM header
    Others
    Special FeaturesASUS 5X PROTECTION III
    - ASUS DIGI+ VRM
    - ASUS LANGuard
    - ASUS Overvoltage Protection
    - ASUS SafeSlot Core
    - ASUS Stainless-Steel Back I/O
    ASUS Q-Design
    - ASUS Q-DIMM
    - ASUS Q-Slot
    ASUS Thermal Solution
    - Aluminum heatsink design
    Bundled SoftwareASUS Exclusive Software
    Armoury Crate
    AI Suite 3
    - Performance And Power Saving Utility
    TurboV EVO
    EPU
    Digi+ VRM
    Fan Xpert 2+
    - EZ update
    ASUS CPU-Z
    AI Charger
    DAEMON Tools
    Norton Anti-virus software (Free Trial for 60 days)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    Warranty Information
    Manufacturing Warranty03 Years Warranty

    Description

    Asus Prime A520M-K AM4 Micro ATX AMD Motherboard

    Boasting a robust power design, ASUS Prime series is expertly engineered with comprehensive cooling solutions and intelligent tuning options. Prime A520M series motherboards offer daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. The Prime A520M motherboard packs flexible tools to tune every aspect of user's system, enabling user to tweak performance settings maximizing the productivity. It provides intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Coupled with EPU, it has flexible cooling control system that decreases chassis fan speeds below to the default minimum to keep user's system whisper-quiet when performing light tasks. And the Digi+ voltage regulator module delivers real time control over voltage droop, automatically switching frequency and power-efficiency settings. Additionally, Prime A520M-K is designed with an array of hybrid fan headers and features comprehensive cooling controls while owning multiple temperature sources and smart protection. It also provides all the fundamentals to boost daily productivity. This supports high-end rigs loaded with peripherals, including four rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases. Its audio system features audio shielding, separate layer for left and right tracks which offers an immersive sound. Armoury Crate provides control of settings for ASUS products, including keyboard and mouse preferences. To mention, SafeSlot Core is the ASUS-exclusive PCIe slot which is available here. The exclusive Prime A520M-K comes with 03 years of warranty.
