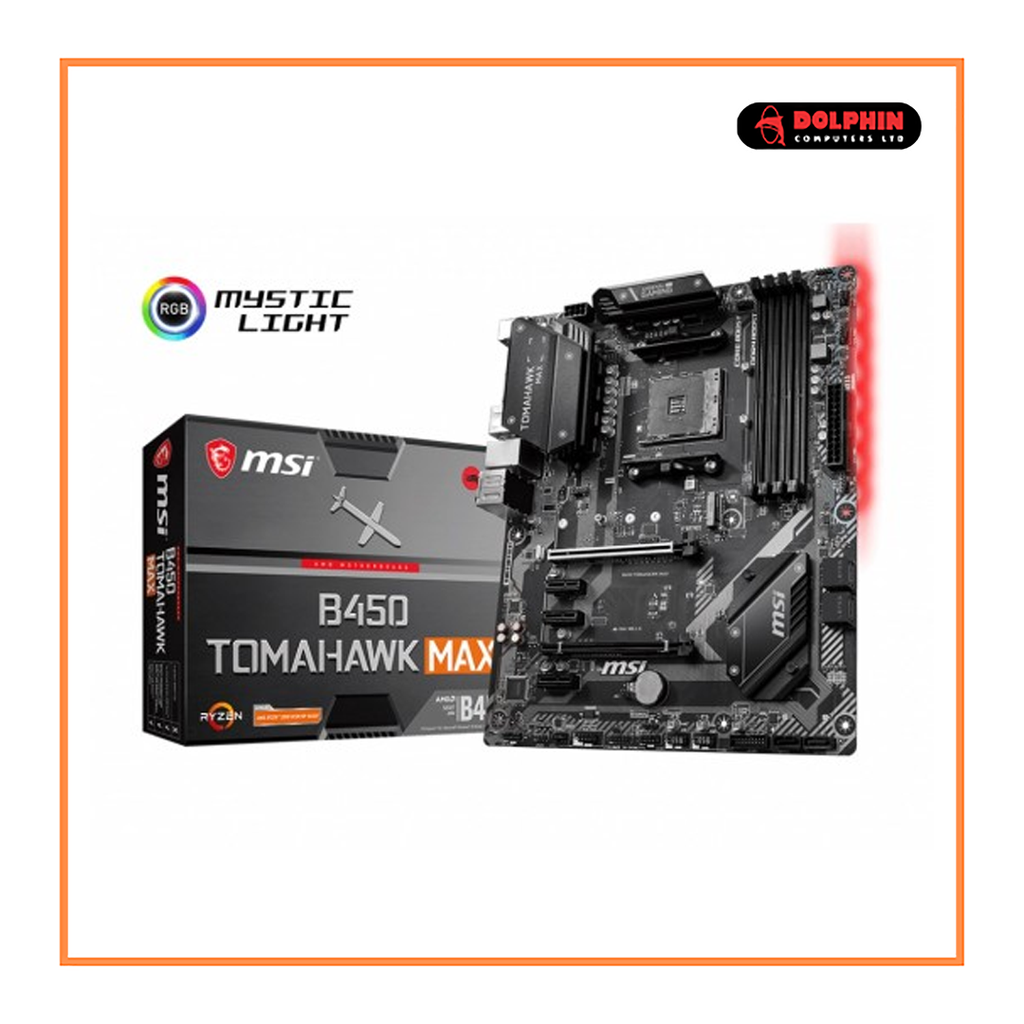

MSI B450 TOMAHAWK MAX AMD ATX Motherboard

https://www.dolphin.com.bd/web/image/product.template/6953/image_1920?unique=a58e0fa


Brand: MSI
Model: MSI B450 TOMAHAWK MAX
Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen
Lightning Fast Game experience
Extended Heatsink Design
Core Boost, DDR4 Boost, Multi-GPU



12,500.00 ৳ 12500.0 BDT 12,500.00 ৳

12,500.00 ৳

Not Available For Sale

    This combination does not exist.


    Share :

    Specification

    Basic Information
    Supported CPUSupports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4
    ChipsetAMD B450 Chipset

    Form FactorATX Form Factor
    Audio7.1-Channel High Definition Audio
    Expansion Slots
    PCI- 1 x PCIe 3.0 x16 slot (PCI_E1)
    -1st, 2nd and 3rd Gen AMD Ryzen processors support x16 speed
    - Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics processors support x8 speed
    - 1 x PCIe 2.0 x16 slot (PCI_E4, supports x4 mode)
    - 3 x PCIe 2.0 x1 slots
    M.2 Socket- 1 x M.2 slot (Key M)
    - Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen
    AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s
    - Supports 2242/ 2260 /2280/ 22110 storage devices
    Memory
    TypeDDR4
    Slots4 x DDR4 memory slots, support up to 64GB
    Supported Memory- Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC)
    - For AMD Ryzen Gen3 (R5/R7/R9)
    - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 4000/ 4133 MHz (by A-XMP OC MODE)
    - For AMD Other CPU
    - Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE)
    - Dual channel memory architecture
    - Supports non-ECC UDIMM memory
    - Supports ECC UDIMM memory (non-ECC mode)
    Maximum MemoryMaximum shared memory of 2048 MB
    Graphics
    Graphics- 1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz1,2
    - 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz1,2
    - Only support when using Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics/ Athlon with Radeon Vega Graphics processors
    Max Shared Memory- Maximum shared memory of 2048 MB
    Connector & Ports
    HDMI- 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160@30Hz, 2560x1600@60Hz
    DVI-D (s)1 x DVI-D port, support a maximum resolution of 1920x1200 @60Hz
    USB (s)AMD B450:
    1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
    1 x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
    2 x USB 3.2 Gen1 (SuperSpeed USB) ports available through the internal USB 3.2 Gen1 connector
    6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)
    AMD CPU:
    2 x USB 3.2 Gen1 (SuperSpeed USB) Type-A ports on the back panel
    LAN Port (s)- 1 x Realtek 8111H Gigabit LAN controller
    Supported StorageAMD CPU:
    2 x SATA 6Gb/s ports1
    1 x M.2 slot (Key M)1
    Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s
    Supports 2242/ 2260 /2280/ 22110 storage devices
    AMD B450:
    4 x SATA 6Gb/s ports
    Audio- 7.1-Channel High Definition Audio
    - HD Audio Connectors
    - 1 x Front panel audio connector
    Internal I/O Ports1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    6 x SATA 6Gb/s connectors
    2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
    1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
    1 x 4-pin CPU fan connector
    1 x 4-pin water-pump-fan connector
    4 x 4-pin system fan connectors
    1 x Front panel audio connector
    2 x System panel connectors
    1 x Chassis Intrusion connector
    1 x Serial Port connector
    1 x Clear CMOS jumper
    2 x 5050 RGB LED strip 12V connectors
    TPM (Trusted Platform Module )1 x TPM module connector
    Others
    Bundled Software-Support for Windows 10 64-bit
    -Support for Windows 7 64-bit
    -To support Windows 7 64-bit, must install an AMD Pinnacle Ridge & Summit Ridge CPU.
    Warranty Information
    Manufacturing Warranty03 years warranty

    Description

    MSI B450 TOMAHAWK MAX AM4 AMD ATX Motherboard

    MSI B450 TOMAHAWK MAX AM4 AMD ATX Motherboard is Supports 1st, 2nd and 3rd Gen AMD Ryzen/ Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Desktop Processors for Socket AM4 with DDR4 Memory, up to 4133(OC) MHz. This motherboard is designed with Extended Heatsink Design that MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed. From this motherboard you will get Lightning Fast Game experience which is consist of 1x TURBO M.2, AMD Turbo USB 3.2 GEN2, Store MI technology. This AMD motherboard is consist with premium layout and fully digital power design to support more cores and provide better performance. In this mothgerboard, the Advanced technology to deliver pure data signals for the best gaming performance and stability with With STEEL ARMOR PCI-E slots. Supports 2-Way AMD Crossfire (Multi GPU). You can simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.

    This motherboard is designed with Heavy Plated Gaming Heatsinks that is Military Style designed for maximum cooling. Here is also used DDR4 Boost that optimized traces and isolated memory circuitry. The PCI-E Steel Armor protecting VGA cards against bending and EMI and the Turbo M.2 delivering speeds up to 32 Gb/s using Gen3 x4, Audio Boost optimized gaming audio using best components with leading heatsink design, extended for maximum cooling and performance in Arsenal Sticker Area which is free for customization with personal style. The B450 AMD MSI motherboards feature tons of convenient and smart design, such as convenient pin-header keep out zone, friendly SATA & USB location and so on, so DIY users can pick and choose any gaming rig they want. It is feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at disposal to push your system to new heights and satisfy even the most demanding tweaker and makes it so easy to install your own motherboard and gaming rig without any issue. This MSI motherboards feature excellent power design with solid and heavy heatsink. They also include enough fan headers with full control to allow you to cool your system any way you want. Every MSI motherboards are certified by strict mechanic which is features convenient pin-header keep out zone and friendly SATA & USB location for compatibility with the widest range of components and devices. The MSI offer a dedicated Qualified Vendor List (QVL) for the most critical part - memory. Combining with MSI DDR4 Boost technology, They provide the maximum compatibility, so you confirm and choose any gaming rig as you want. All the MSI motherboards feature all the latest solution for enthusiast gamers and prosumers. In this motherboard the CPU and memory enhancement and fast storage and USB transfer speed are ready to be on the battlefield. In this motherboard, the high-quality power supply components and intelligent fans optimize CPU cooling performance, which is a key factor in ensuring stable and high-speed operation of the system. This Motherboard is optimized layout design and a fully isolated memory circuitry ensures perfect stability and performance. you never have to worry about your system crashing during games with MSI DDR4 BOOST. MSI motherboards are built with enhanced audio and advanced LAN networking capabilities that turn any gaming experience into an immerse one. The AMD MSI motherboards deliver the highest sound quality through the use of premium quality audio components and get the most immersive sound experience when gaming. MSI motherboards let you enjoy breathtaking, gaming-changing sound.

    MSI is no stranger to building high-performance motherboards with years of experience. The R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions. In this MSI motherboards, using only the finest quality components and integrating the latest technological innovations delivers the best possible professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, long-lasting and high performance motherboard. This excluive MSI B450 TOMAHAWK MAX motherboard comes with 03 years of warranty.
