Price:
7,370.00 ৳

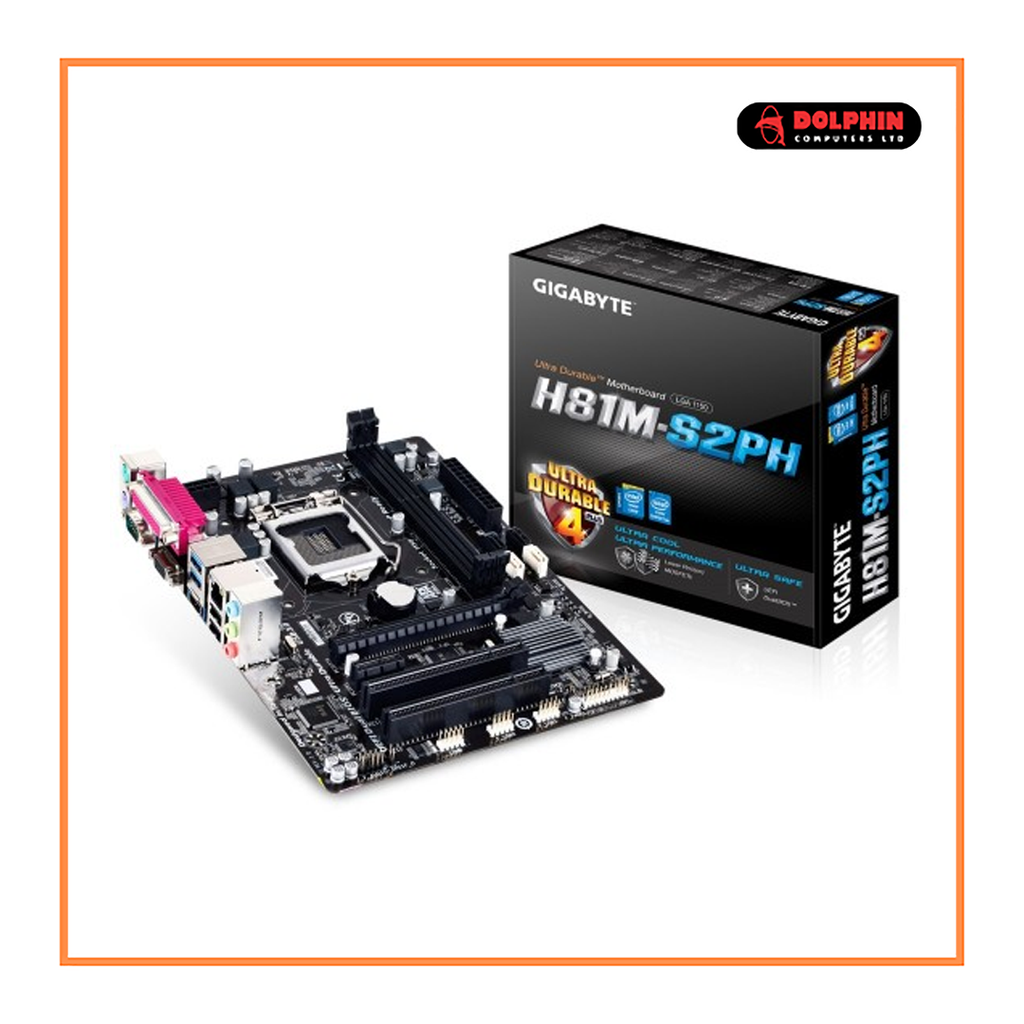

Gigabyte GA-H81M-S2PH Micro ATX Motherboard
Brand: Gigabyte
Model: Gigabyte GA-H81M-S2PH
Supports 4th Generation Intel Core processors
GIGABYTE UEFI DualBIOS
All solid capacitors design
LAN with high ESD Protection
Tags :
| Supported CPU |
|
|---|---|
| Chipset | Intel® H81 Express Chipset |
| Supported Memory | 2 X 1.5V DDR3 DIMM Sockets Supporting Up To 16 GB Of System Memory * Due To A Windows 32-Bit Operating System Limitation, When More Than 4 GB Of Physical Memory Is Installed, The Actual Memory Size Displayed Will Be Less Than The Size Of The Physical Memory Installed. Dual Channel Memory Architecture Support For DDR3 1600/1333 MHz Memory Modules Support For Non-ECC Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules |
| BIOS | 2 X 64 Mbit Flash Use Of Licensed AMI EFI BIOS Support For DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| RAM Type | DDR3 |
| FromFactor | Micro ATX Form Factor; 24.4cm X 18.0cm |
| Internal I/O Ports | 1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 2 X SATA 6Gb/S Connectors 2 X SATA 3Gb/S Connectors 1 X CPU Fan Header 1 X System Fan Header 1 X Front Panel Header 1 X Front Panel Audio Header 1 X S/PDIF Out Header 2 X USB 2.0/1.1 Header 1 X Serial Port Header 1 X Clear CMOS Jumper |
| Audio | Realtek® ALC887 Codec High Definition Audio 2/4/5.1/7.1-Channel * To Configure 7.1-Channel Audio, You Have To Use An HD Front Panel Audio Module And Enable The Multi-Channel Audio Feature Through The Audio Driver. Support For S/PDIF Out |
| Expansion Slots |
|
| Operating System | Support For Windows 10/8.1/8/7 |
| LAN | Realtek® GbE LAN Chip (10/100/1000 Mbit) |
| Graphics | Integrated Graphics Processor - Intel® HD Graphics Support:
|
| USB | Up To 2 USB 3.0/2.0 Ports On The Back Panel Up To 6 USB 2.0/1.1 Ports (2 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers) |
| Brand | Gigabyte |
Gigabyte GA-H81M-S2PH Micro ATX Motherboard Price in Bangladesh
Buy your required products Gigabyte GA-H81M-DS2 Micro ATX Motherboard Price in Bangladesh. Gigabyte Motherboard Best Price from our online and also you will get free home delivery or pickup from our showroom.
GIGABYTE 8 Series motherboards support the latest 4th Generation Intel Core processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking, and device charging, GIGABYTE 8 series motherboards are in a class of their own. The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel Core processors and Intel H81 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel processor graphics provide significantly higher frame rates in the latest DX11 3D game titles. GIGABYTE Ultra Durable 4 Plus debuts on GIGABYTE 8 Series motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation, and extended motherboard lifespan. GIGABYTE motherboards feature GIGABYTE DualBIOS, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process. Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments. GIGABYTE 8 Series motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes. On GIGABYTE 8 Series motherboards each USB port has its own dedicated power fuse that prevents unwanted USB port failure, helping to safeguard your important data during transfer. 4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE 8 series motherboards provide native 4K support with integrated Intel HD Graphics via HDMI.
