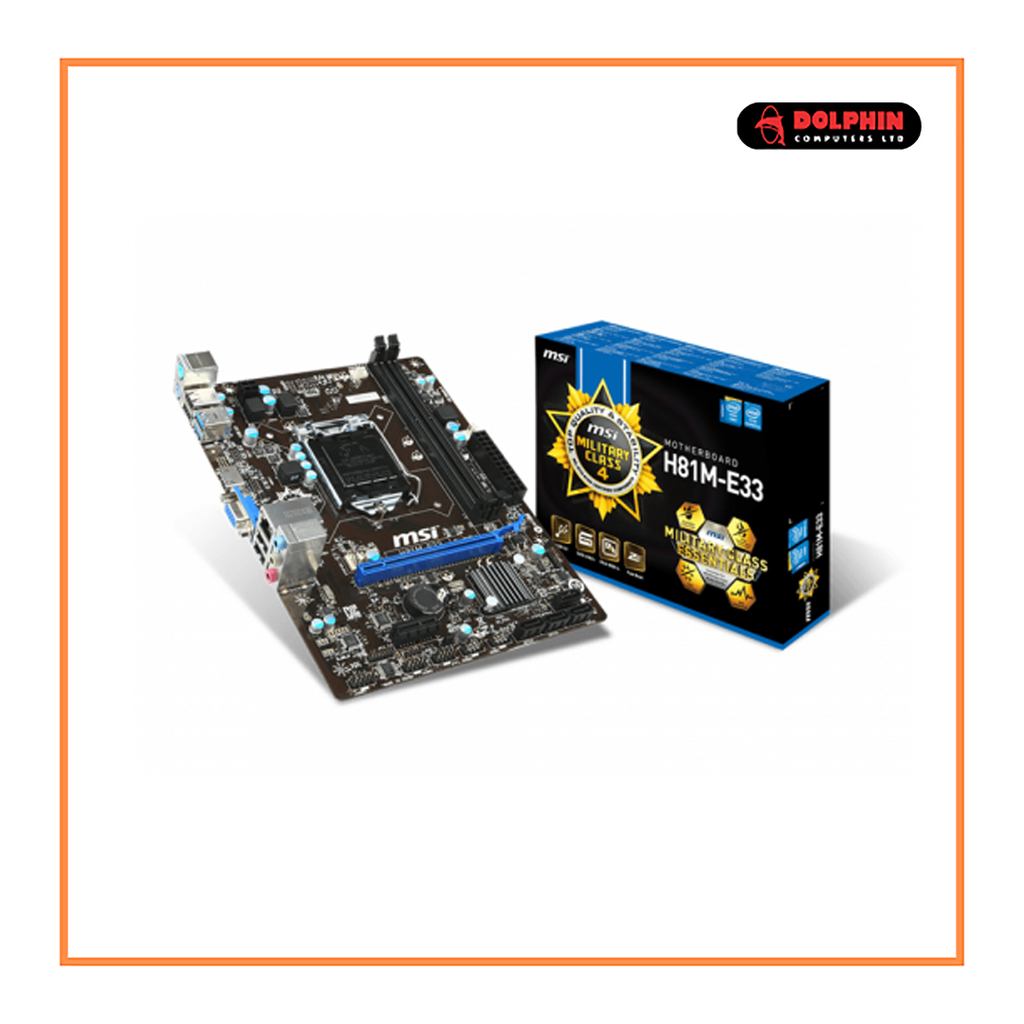

MSI H81M-E33 Intel Motherboard

https://www.dolphin.com.bd/web/image/product.template/6626/image_1920?unique=371c543

Brand: MSI
Model: MSI H81M-E33 Intel H81
3rd and 4th Generation Intel LGA 1150 Socket Processor
RAM: up to 16GB Max
Chipset: Intel H81 Express
Audio: Chip integrated by Realtek



6,000.00 ৳ 6000.0 BDT 6,000.00 ৳

6,000.00 ৳

Not Available For Sale

  • Brands

This combination does not exist.

Contact Us
Brands: MSI
MSI
Tags :
Share :
Terms and Conditions

Specification

Basic Information
Supported CPU4th Generation Intel Core i7 / Core i5 / Core i3 / Pentium / Celeron processors for LGA 1150 socket
ChipsetIntel H81 Express
BIOSThe motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
Form Factor226 x 173 mm Micro-ATX Form Factor
AudioChip integrated by Realtek ALC887
Flexible 8-channel audio with jack sensing
Compliant with Azalia 1.0 spec
Expansion Slots
PCI1 x PCIe 2.0 x16 slot
1 x PCIe x1 slot
Memory
TypeDual-Channel mode
Slots2 Slots
Supported Memory1066/1333/1600 MHz
Maximum Memoryup to 16GB Max
Connector & Ports
HDMI1 x HDMI port
USB (s)4 x USB 2.0 ports
2 x USB 3.0 ports
LAN Port (s)Supports Gb LAN 10/100/1000 by Realtek RTL8111G
Supported StorageSATAIII controller integrated in Intel H81 chipset
- Up to 6Gb/s transfer speed.
- Supports two SATAIII ports (SATA1~2) by H81

SATAII controller integrated in Intel H81 chipset
- Up to 3Gb/s transfer speed.
- Supports two SATAII ports (SATA3~4) by H81
AudioChip integrated by Realtek ALC887
Flexible 8-channel audio with jack sensing
Compliant with Azalia 1.0 spec
Internal I/O Ports1 x ATX 24-Pin power connector
1 x 4-pin ATX 12V power connector
CPU x 1 / System x 2 FAN connectors
1 x Clear CMOS jumper
2 x SATAIII connectors
2 x SATAII connectors
2 x USB 2.0 connectors
1 x Serial port connector
1 x Front Panel Audio connector
1 x Chassis Intrusion connector
TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header
Warranty Information
Manufacturing Warranty3 Years
