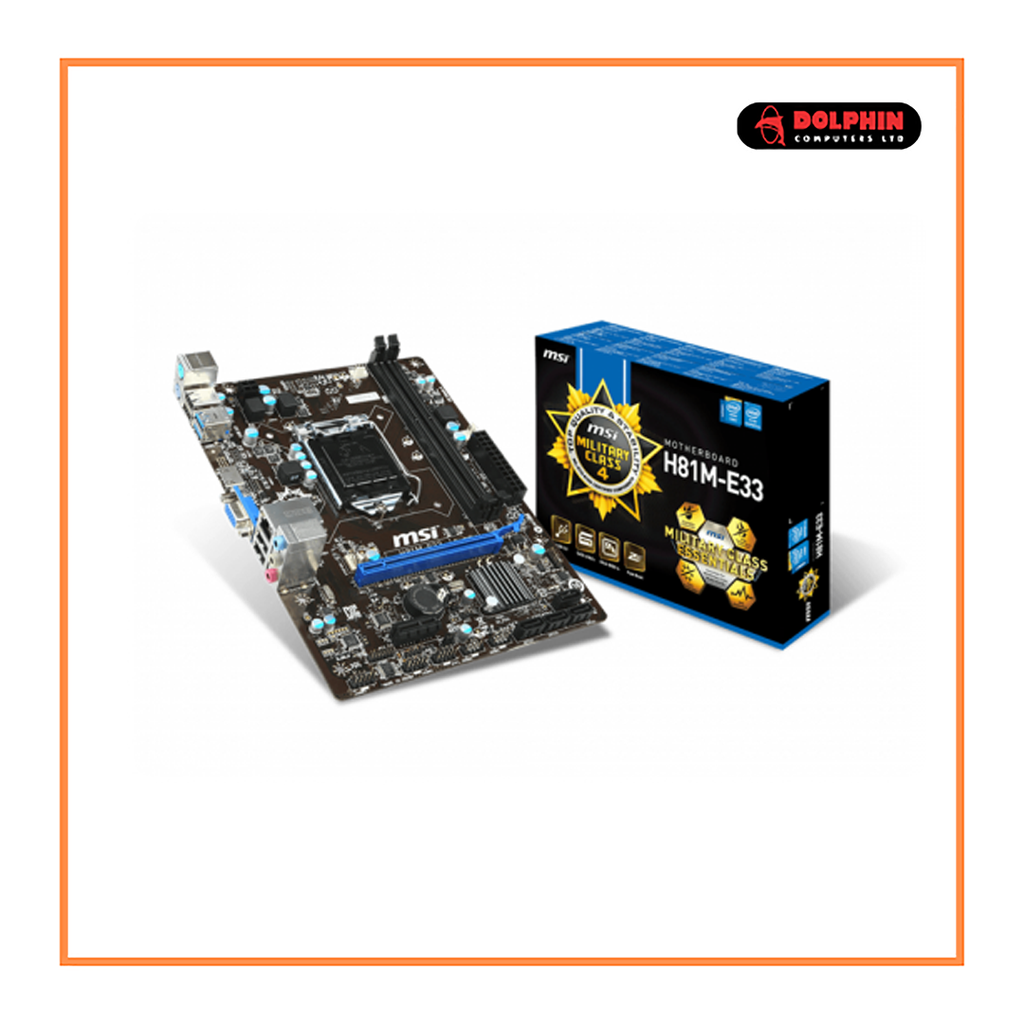

MSI H81M-E33 Intel Motherboard

https://www.dolphin.com.bd/web/image/product.template/6626/image_1920?unique=a58e0fa

Brand: MSI
Model: MSI H81M-E33 Intel H81
3rd and 4th Generation Intel LGA 1150 Socket Processor
RAM: up to 16GB Max
Chipset: Intel H81 Express
Audio: Chip integrated by Realtek



6,000.00 ৳ 6000.0 BDT 6,000.00 ৳

6,000.00 ৳

Not Available For Sale

    This combination does not exist.


    Share :

    Specification

    Basic Information
    Supported CPU4th Generation Intel Core i7 / Core i5 / Core i3 / Pentium / Celeron processors for LGA 1150 socket
    ChipsetIntel H81 Express
    BIOSThe motherboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
    The motherboard provides a Desktop Management Interface(DMI) function which records your motherboard specifications.
    Form Factor226 x 173 mm Micro-ATX Form Factor
    AudioChip integrated by Realtek ALC887
    Flexible 8-channel audio with jack sensing
    Compliant with Azalia 1.0 spec
    Expansion Slots
    PCI1 x PCIe 2.0 x16 slot
    1 x PCIe x1 slot
    Memory
    TypeDual-Channel mode
    Slots2 Slots
    Supported Memory1066/1333/1600 MHz
    Maximum Memoryup to 16GB Max
    Connector & Ports
    HDMI1 x HDMI port
    USB (s)4 x USB 2.0 ports
    2 x USB 3.0 ports
    LAN Port (s)Supports Gb LAN 10/100/1000 by Realtek RTL8111G
    Supported StorageSATAIII controller integrated in Intel H81 chipset
    - Up to 6Gb/s transfer speed.
    - Supports two SATAIII ports (SATA1~2) by H81

    SATAII controller integrated in Intel H81 chipset
    - Up to 3Gb/s transfer speed.
    - Supports two SATAII ports (SATA3~4) by H81
    AudioChip integrated by Realtek ALC887
    Flexible 8-channel audio with jack sensing
    Compliant with Azalia 1.0 spec
    Internal I/O Ports1 x ATX 24-Pin power connector
    1 x 4-pin ATX 12V power connector
    CPU x 1 / System x 2 FAN connectors
    1 x Clear CMOS jumper
    2 x SATAIII connectors
    2 x SATAII connectors
    2 x USB 2.0 connectors
    1 x Serial port connector
    1 x Front Panel Audio connector
    1 x Chassis Intrusion connector
    TPM (Trusted Platform Module )1 x Trusted Platform Module (TPM) header
    Warranty Information
    Manufacturing Warranty3 Years
