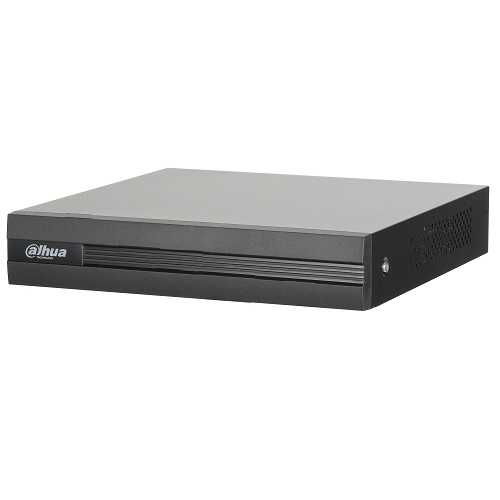

DAHUA XVR-4104HS 04, CH PENTA-BRID DVR,XVR1A08
Key Features
Model: Dahua XVR1A08
Long transmission distance over coax cable
Supports 1 SATA HDD, up to 6TB
Max 40Mbps Incoming Bandwidth
Max 10 channels IP camera inputs
Specification
System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Audio and Video | |
| IP Camera Input | 8CH: 8+2, each channel up to 5MP HDCVI Camera: 1080P@25/30fps, 720P@25/30fps AHD Camera: 1080P@25/30, 720P@25/30fps TVI Camera: 1080P@25/30, 720P@25/30fps CVBS Camera: PAL/NTSC |
| Two-Way Talk | Reuse audio in/out, RCA |
Display | |
| Interface | 1 HDMI ,1 VGA |
| Resolution | 1920×1080, 1280×1024, 1280×720, 1024x768 |
| Multi-Screen Display | When IP extension mode not enabled: 8CH: 1/4/8/9 When IP extension mode enabled: 8CH: 1/4/8/9/16 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
Recording | |
| Compression | H.264 |
| Resolution | 1080N, 720P, 960H, D1, HD1, BCIF, CIF, QCIF |
| Record Rate | Main Stream- 8CH: the 1st channel 1080N/ 720P (1~25/30fps), others 1080N (1~12fps)/ 720P(1~15fps); 960H/ D1/ HD1/ BCIF/ CIF/ QCIF (1~25/30fps) Sub steram- CIF/QCIF (1~7fps) |
| Bit Rate | 32Kbps ~ 4096Kbps Per Channel |
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
Video Detection And Alarm | |
| Trigger Event | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
Playback And Backup | |
| Sync Playback | 8CH: 1/4/9 |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Third Party Support | |
| Third Party Support | Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
Network | |
| Interface | 1 RJ-45 Port (100M) |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter ,DDNS, FTP, Alarm Server, P2P,IP Search (Supports IP camera, DVR, NVS, etc.) |
| Maximum User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
Storage | |
| Internal HDD | 1 SATA Port, up to 6TB capacity |
Auxiliary Interface | |
| USB | 2 USB 2.0 |
Power | |
| Power Supply | DC12V/1.5A |
| Power Consumption | <10W |
Component Environment | |
| Operational Conditions | -10°C ~ +45°C (+14°F ~ +113°F), 10~ 90% RH |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F) , 0~ 90% RH |
Construction | |
| Dimensions | Cooper 1U, 197mm×192mm×41mm (7.8“×7.6”×1.6“) |
| Net Weight | 0.55kg (1.2lb) |
| Gross Weight | 1kg (2.2lb) |
Description
Dahua XVR1A08 8 Channel Penta-brid XVR
Dahua, as a technology leader, is always the first ever developed the shining new technology in the security industry ,and today we present Cooper Series XVR. Designed as a full compatibility product, XVR is able to provide end user the simplicity of analog system, namely lower system cost, simple installation and use of existing cable. It is ideal for a wide range of civil applications such as retail store, home protection and so on. Featuring high performance with attractive costs, the Cooper Series offers a great solution for users facing budget constraints who both require quality and performance. The XVR can auto recognize the signal of front-camera without any setting. It makes operation more friendly and convenient. The XVR1A04 supports up to 2MP IPC input, and XVR1A08 suppports up to 5MP IPC input. The integrated design can reduce wiring troubles which makes it much more cost-effective and convenient for installation. The HDCVI system supports long distance transmission over coaxial cable and UTP, max. 800m for 1080P and 1200m for 720P. This function helps you get more motion detect video during a short time through drawing a region when playback. It is very useful when an emergency occurs. High performance chip provides perfect image quality with better color reproduction. Monitor at anytime and anywhere. Easily and conveniently mange the device.
