Key Features

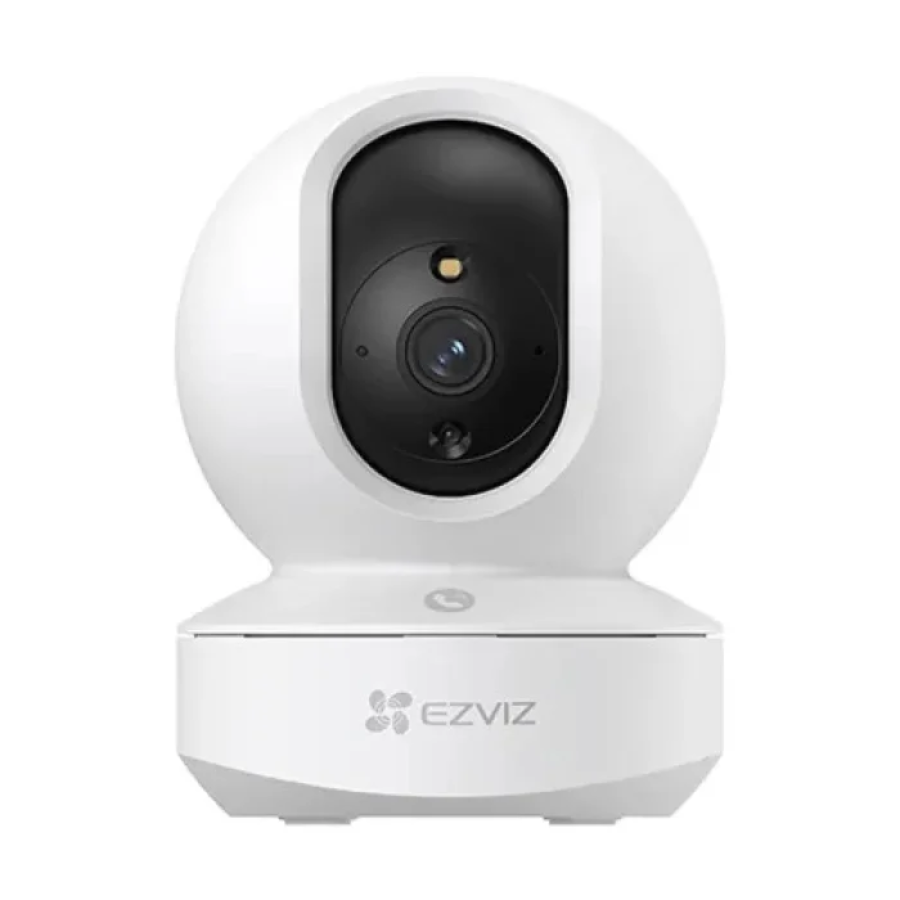

Model: TY1 Pro 3K 5MP
Image Sensor:1/2.7 Inch 5MP Progressive Scan CMOS
Resolution: 3K 2304 x 1296
Focal Length: 4mm @ F1.6
General Information | |
| Image Sensor | 1/2.7 Inch Progressive Scan CMOS |
| Effective Pixels | 5MP |
| Max. Resolution | 3K 2304 x 1296 |
| Frame Rate | Self-Adaptive during network transmission |
| Lens | 4mm |
| Pan & Tilt | Yes |
| IR Distance | IR-cut filter with auto switch |
| Field of View | 82 Degree (Horizontal), 48 Degree (Vertical), 98 Degree (Diagonal) |
| Video Compression | H.264/H.265 |
| Audio Input / Output | Yes |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Smart Alarm | Motion Detection, Human Shape Detection, Human Shape Tracking, Loud Noise Detection, Patrol Mode |
| Storage Type | 512GB |
| Others | EZVIZ cloud proprietary protocol 2.4GHz - 2.4835GHz Mic and Speaker Night Vision Mode Self-adaptive shutter |
Network & Connectivity | |
| Wireless Network | WiFi |
| Others | IEEE802.11b, 802.11g, 802.11n AP paring RJ45 X 1 (10M/100M self-adaptive Ethernet port) WPA/WPA2, WPA-PSK/WPA2-PSK |
Power | |
| Power Ports | Type-C |
| Power Supply | DC 5V/2A |
| Power Consumption | 5W |
Physical Specification | |
| Color | White |
| Dimension | 88 x 88.2 x 119mm |
| Weight | 656 gm |
| Operating Temperature | -10 Degree C to 45 Degree C |
| Others | Humidity 95% or less (non-condensing) |
Warranty Information | |
| Warranty | 02 Year Warranty |
| Brands | EZVIZ |
