Price:
45650,00 ৳

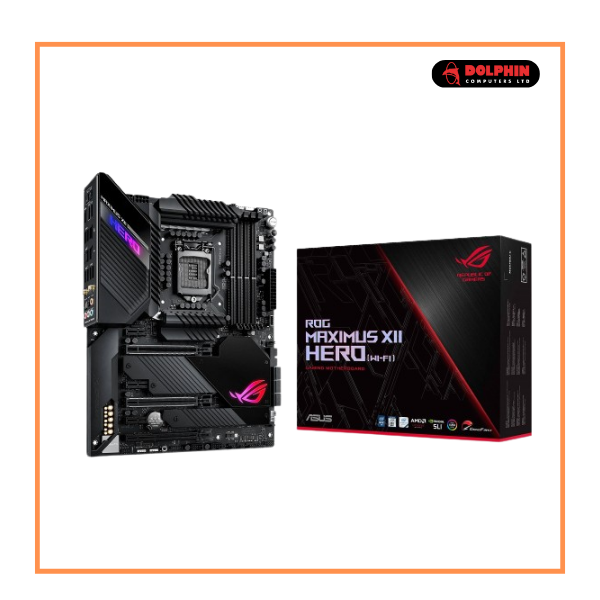

Asus ROG Maximus XII Hero Z490 Intel 10th Gen Wi-Fi ATX Motherboard
Brand: ASUS
Model: ROG Maximus XII Hero Z490 Wi-Fi
LGA 1200 socket for 10th-gen Intel Core desktop processors
Dedicated Water Cooling Zones
Automated System-Wide Tuning
Dual Ethernet and Gigabit Ethernet
| Supported CPU | Intel Socket 1200 For 10th Gen Intel Core, Pentium Gold And Celeron Processors |
|---|---|
| Chipset | Intel Z490 |
| Supported Memory | 4800(O.C.)/ 4700(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-Buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem III |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| RAM Type | DDR4 |
| FromFactor | ATX Form Factor: 12 Inch X 9.5 Inch ( 30.5 Cm X 24.4 Cm ) |
| Internal I/O Ports | 1 X CPU Fan Connector(S) 1 X CPU OPT Fan Connector(S) 3 X Chassis Fan Connector(S) 1 X AIO_PUMP Connector 1 X H_AMP Fan Connector 1 X W_PUMP+ Connector 1 X W_IN Header 1 X W_OUT Header 1 X W_FLOW Header 1 X AAFP Connector 2 X Aura RGB Strip Headers 2 X Addressable Gen 2 Header(S) 1 X USB 3.2 Gen 1 Front Panel TypeC Connector 1 X USB 3.2 Gen 1(Up To 5Gbps) Connector(S) Support(S) Additional 2 USB 3.2 Gen 1 Port(S) 2 X USB 2.0 Connector(S) Support(S) Additional 4 USB 2.0 Port(S) 3 X M.2 Socket 3 6 X SATA 6Gb/S Connector(S) 1 X Thunderbolt Header(S) 1 X 24-Pin EATX Power Connector(S) 1 X 8-Pin ATX 12V Power Connector(S) 1 X 4-Pin ATX 12V Power Connector(S) 1 X Thermal Sensor Connector(S) 1 X ReTry Button 1 X System Panel Connector 1 X Speaker Connector 1 X Start Button 1 X FlexKey Button |
| Maximum Memory | 128 GB |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220 - Impedance Sense For Front And Rear Headphone Outputs - Supports : Multi-Streaming, Front Panel Jack-Retasking, Up To 24-Bit/192kHz Playback - High Quality 120 DB SNR Stereo Playback Output And 113 DB SNR Recording Input - ESS™ ES9023 DAC + RC4580 OP AMP - Supports Up To 32-Bit/192kHz Playback Audio Feature : - SupremeFX Shielding Technology - Gold-Plated Jacks - Optical S/PDIF Out Port(S) At Back Panel - Premium Japanese Audio Capacitors - Audio Cover |
| HDMI | 1 X HDMI 1.4b |
| LAN | Intel I219-V 1Gb Ethernet Marvell AQtion AQC111C 5Gb Ethernet ASUS LANGuard |
| Graphics | Integrated Graphics Processor |
| USB | Rear USB Port ( Total 10 ) 4 X USB 3.2 Gen 2 Port(S)(3 + Type-A +1 + USB Type-C) 4 X USB 3.2 Gen 1 Port(S)(4 X Type-A) 2 X USB 2.0 Port(S)(2 X Type-A) Front USB Port ( Total 7 ) 1 X USB 3.2 Gen 2 Front Panel Connector Port(S) 2 X USB 3.2 Gen 1 Port(S) 4 X |
| Supported Storage | Total Supports 3 X M.2 Slots And 6 X SATA 6Gb/S Ports Intel Z490 Chipset : 1 X M.2_1 Socket 3, With M Key, Type 2242/2260/2280/22110 Storage Devices Support (SATA & PCIE 3.0 X 4 Mode) 1 X M.2_2 Socket 3, With M Key, Type 2242/2260/2280 Storage Devices Sup |
| Brand | Asus |
Asus ROG Maximus XII Hero Z490 Intel 10th Gen Wi-Fi ATX Motherboard Best Price in Bangladesh
Find Asus ROG Maximus XII Hero Z490 Intel 10th Gen Wi-Fi ATX Motherboard Best Price in Bangladesh. Find also other Motherboard on reasonable from our website. You will get home delivery in Dhaka city or pickup from our showroom.
Basic Information
| Supported CPU | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel 14 nm CPU Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
| Chipset | Intel Z490 |
| Form Factor | ATX Form Factor: 12 inch x 9.5 inch ( 30.5 cm x 24.4 cm ) |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
Expansion Slots
| PCI | Intel 10th Gen Processors 2 x PCIe 3.0 x16 (x16 or dual x8) Intel Z490 Chipset 1 x PCIe 3.0 x16 (x4 mode) 3 x PCIe 3.0 x1 |
| M.2 Socket | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel Z490 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2_3 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) |
Memory
| Type | Dual Channel Memory Architecture |
| Slots | 4 x DDR4 DIMM |
| Supported Memory | 4800(O.C.)/ 4700(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory Supports Intel Extreme Memory Profile (XMP) OptiMem III |
| Maximum Memory | 128 GB |
Graphics
| Graphics | Integrated Graphics Processor 1 x HDMI 1.4b Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX™ Technology Supports AMD 2-Way CrossFireX Technology |
Connector & Ports
| HDMI | 1 x HDMI 1.4b |
| USB (s) | Rear USB Port ( Total 10 ) 4 x USB 3.2 Gen 2 port(s)(3 + Type-A +1 + USB Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) 2 x USB 2.0 port(s)(2 x Type-A) Front USB Port ( Total 7 ) 1 x USB 3.2 Gen 2 front panel connector port(s) 2 x USB 3.2 Gen 1 port(s) 4 x USB 2.0 port(s) |
| LAN Port (s) | Intel I219-V 1Gb Ethernet Marvell AQtion AQC111C 5Gb Ethernet ASUS LANGuard |
| Supported Storage | Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel Z490 Chipset : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x M.2_3 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode) 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 5, 10 Intel Optane Memory Ready |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - ESS™ ES9023 DAC + RC4580 OP AMP - Supports up to 32-Bit/192kHz playback Audio Feature : - SupremeFX Shielding Technology - Gold-plated jacks - Optical S/PDIF out port(s) at back panel - Premium Japanese audio capacitors - Audio Cover |
| Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x H_AMP fan connector 1 x W_PUMP+ connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x AAFP connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen 1 front panel TypeC connector 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 3 x M.2 Socket 3 6 x SATA 6Gb/s connector(s) 1 x Thunderbolt header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Thermal sensor connector(s) 1 x ReTry button 1 x System panel connector 1 x Speaker connector 1 x Start button 1 x FlexKey button |
| TPM (Trusted Platform Module ) | N/A |
Warranty Information
| Manufacturing Warranty | 03 Years Warranty |
Others
| Special Features | Intel Wi-Fi 6 AX201: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface [ROG Exclusive Software] - Mem Tweakit - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - BullGuard Internet Security (1-year full version) [ASUS Exclusive Software] Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - 5-way Optimization with AI Overclocking: TPU, EPU, Digi+ Power Control, Fan Xpert 4, Turbo app - EZ update AI Charger WinRAR [UEFI BIOS] AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey ROG Extreme OC kit - FlexKey button - ReTry button - Start button Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - ASUS Q-Code - ASUS Q-Connector - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink cover ASUS EZ DIY - BIOS Flashback™ button - Clear CMOS button - Procool II - Pre-mounted I/O shield - SafeSlot AURA Sync - Standard RGB headers - Addressable Gen 2 RGB headers |
Asus ROG Maximus XII Hero Z490 Intel 10th Gen Motherboard
Asus ROG Maximus XII Hero is the perfect foundation for the Republic of Gamers. It's a motherboard that packs substantial power, smart cooling, and faster memory support under a stealthy skin. Loaded with renowned ROG features, from AI overclocking and AI cooling to attention-grabbing Aura Sync illumination, Maximus XII Hero is ready to perform and crafted for customization. The Intel Comet Lake processor features 10 cores and a peak single-core Turbo speed that exceeds 5.3 GHz right out of the box. To cope with this increased demand on the system, Maximus XII Hero takes advantage of its intelligent VRM design and uses quality components to ensure the best gaming and daily productive computing experience. Maintaining system stability is paramount under high load, so Maximus XII Hero employs large VRM and chipset heatsinks that strike the right balance between surface area and mass. The extra-large armor heatsinks also cover multiple M.2 slots. Asus ROG Maximus XII Hero motherboard Featuring premium components and multiple fan headers, Maximus XII Hero is fully armed to provide the best foundation for gaming systems – enabling higher performance at lower temperatures. Asus ROG Maximus XII Hero motherboard Maximus XII Hero is packed with intuitive and flexible tools to allow customization across all system parameters to deliver the performance you want. Asus ROG Maximus XII Hero motherboard ROG Maximus XII Hero features the most comprehensive cooling options ever. Asus ROG Maximus XII Hero motherboard Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. And all settings can be easily managed by Fan Xpert 4 or UEFI. Asus ROG Maximus XII Hero motherboard has Dual water-temperature headers and a flow-rate header feed information straight into the AI Suite utility. Asus ROG Maximus XII Hero motherboard allowing you to track coolant temperatures and the flow rate of the entire loop. Maximus XII Hero is packed with intuitive and flexible tools to allow customization across all system parameters to deliver the performance you want. ROG Maximus XII Hero offers advanced connectivity, including WiFi 6 (AX201) and dual Ethernet with intel 1Gb and Marvell 5Gb Ethernet port to eliminate bottlenecks so you can enjoy exceptionally smooth online and LAN play. Asus ROG Maximus XII Hero motherboard additionally, the M.2 supports Intel Optane TM Memory technology to maximize the speed of your SSD for faster load times, and SupremeFX onboard audio provides superb sound while saving a PCIe slot.Asus ROG Maximus XII Hero motherboard In addition to extraordinary performance, Maximus XII Hero provides extensive styling and customization options to let you build a system that truly stands apart. Asus ROG Maximus XII Hero motherboard has a 03 year warranty.
| Brands | Asus |
