Price:
19500,00 ৳

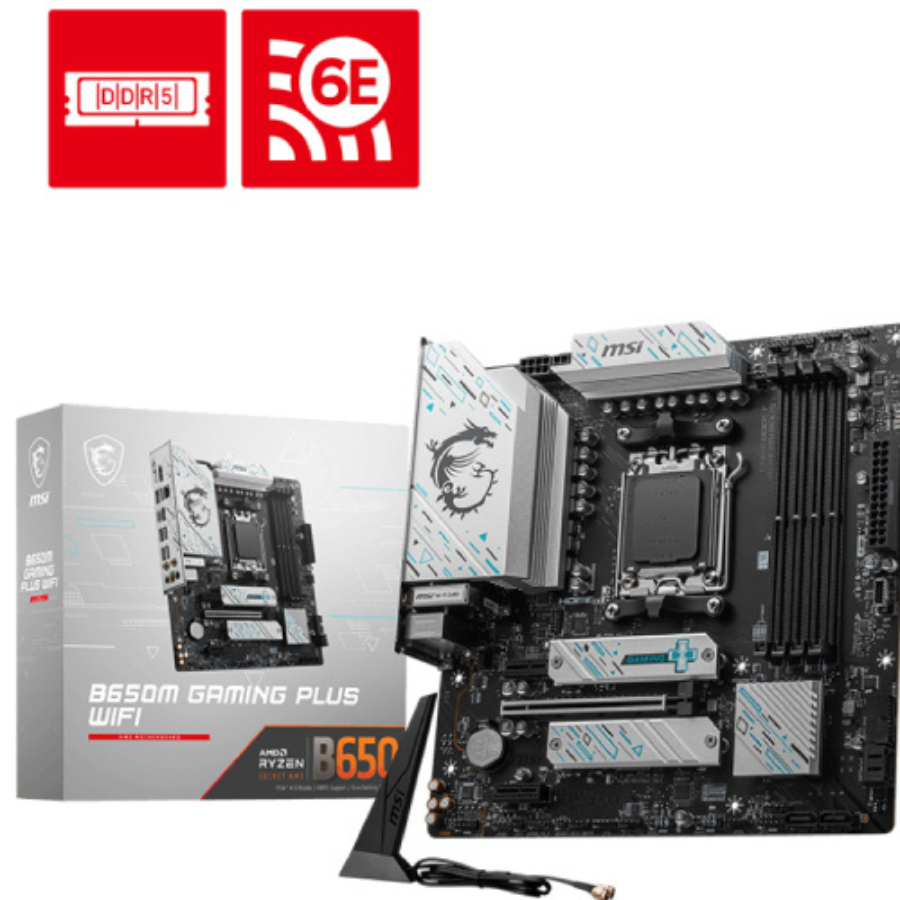

MSI MOTHERBOARD B650M GAMING PLUS WIFI
Key Features
Model: B650M GAMING PLUS WIFI
Supported CPU: Ryzen 9000/ 8000/ 7000 Processors for Socket AM5
Supported RAM: 4x DDR5 7200+(OC) MHz
Graphics Output: 1x HDMI, 1x Display Port
Features: 2.5G LAN with Wi-Fi 6E Solution
Specification
Basic Information | |
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Chipset | AMD B650 |
| Form Factor | mATX 243.84mmx243.84mm |
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
Expansion Slots | |
| PCI | 1x PCI-E x16 slot • Supports x16 (For Ryzen 7000 Series processors) • Supports x8 (For Ryzen 7 8700G and Ryzen 5 8600G processors) • Supports x4 (For Ryzen 5 8500G processor) 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) |
Memory | |
| Type | DDR5 |
| Slots | 4x UDIMM |
| Supported Memory | Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™ Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz |
| Maximum Memory | 256GB |
Graphics | |
| Graphics | Support HDMI 2.1, maximum resolution of 4K 60Hz Support DP 1.4, the maximum resolution of 4K 60Hz |
Connector & Ports | |
| HDMI | 1x HDMI |
| Display Port (s) | 1x DisplayPort |
| USB (s) | 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) |
| LAN Port (s) | Realtek RTL8125BG 2.5Gbps LAN |
| Wireless Communication module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3 |
| Supported Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G • M2_2 supports PCIe 4.0 x2 speed when Ryzen 5 8500G is installed |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 for M.2 NVMe storage devices |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) |
Others | |
| Special Features | 4x EZ Debug LED |
Warranty Information | |
| Manufacturing Warranty | 3 Years |
Description
MSI B650M GAMING PLUS WIFI AM5 Motherboard
The MSI B650M GAMING PLUS WIFI AM5 motherboard is a robust and high-performance foundation for gaming and desktop computing. It supports AMD Ryzen 8000 and 7000 Series Desktop Processors, along with DDR5 memory, capable of reaching speeds up to 7200+(OC) MHz for enhanced performance. The motherboard features an advanced 10+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost to ensure stable and efficient power delivery. Designed for an exceptional gaming experience, it includes a PCIe 4.0 slot, Lightning Gen4 M.2, and USB 3.2 Gen 2, offering fast data transfer rates and a seamless gameplay environment. The premium thermal solution features an extended heatsink design and M.2 Shield Frozr, maintaining optimal temperatures for high performance and continuous operation. AUDIO BOOST technology provides studio-grade sound quality, enhancing the immersive gaming experience. The motherboard is constructed with a high-quality 6-layer PCB made with 2oz thickened copper, ensuring improved durability and performance.
